Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display

M12 5pin Electronic Digital Level Switch

RS485 electronic water pressure switch

PNP electronic water pressure switch

Miejsce pochodzenia:

Hefei, CN

Nazwa handlowa:

WNK

Orzecznictwo:

SGS, ISO9001:2015

Numer modelu:

SPS

Skontaktuj się z nami

Poproś o wycenę

Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display

Product Details

Wyjście:

4...20mA/0...5V+PNP+MODBUS

Dokładność:

≤0,5%FS

Zakres pomiarowy:

0 ~ 100 mH2O

Stabilność długoterminowa:

±0,3% pełnej skali rocznie

Zasilanie:

12...30 V prądu stałego

Wyświetlacz:

OLED-owe

Temperatura pracy:

-30 ~ 80 stopni C

Temperatura nośnika:

0 ~ 60 stopni C

Przełącz wyjście:

PNP lub NPN

Typ przełącznika:

normalnie otwarty lub normalnie zamknięty

Ochrona przed wnikaniem:

IP65

Złącze elektryczne:

M12 5pin lub 8pin

Podkreślić:

M12 5pin Electronic Digital Level Switch

RS485 electronic water pressure switch

PNP electronic water pressure switch

Payment & Shipping Terms

Minimalne zamówienie

1 sztuka

Cena

negotiable

Szczegóły pakowania

Opakowanie zdatne do transportu morskiego lub opakowanie zdatne do lotu

Czas dostawy

5-8 dni roboczych

Zasady płatności

T/T, Western Union

Możliwość Supply

5000 sztuk miesięcznie

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

Uzyskaj najlepszą cenę

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

Uzyskaj najlepszą cenę

Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

Uzyskaj najlepszą cenę

OLED Electronic Digital Level Switch Water Indicator For Hydraulic Fluid

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

Introduction - SPS Intelligent Electronic Pressure Switch with OLED Display

Electronic Pressure Switch 10bar 100bar with Digital RS485O Output

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

Production Spec

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure
Pressure range	-100kPa~60MPa
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80℃
Process temperature	-30~80℃
Protection class	IP65

Dimension

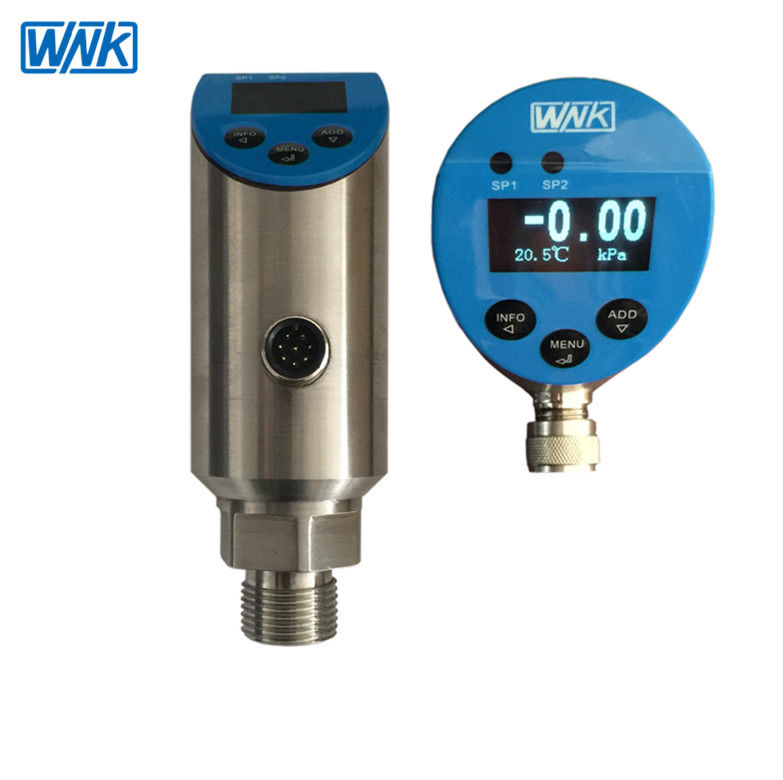

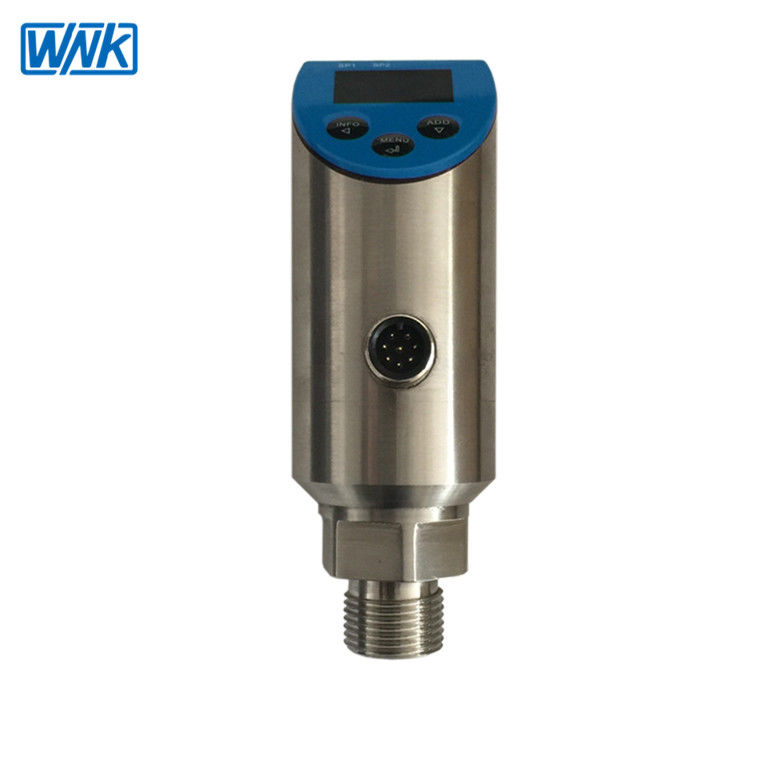

Product Show

Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display 2
