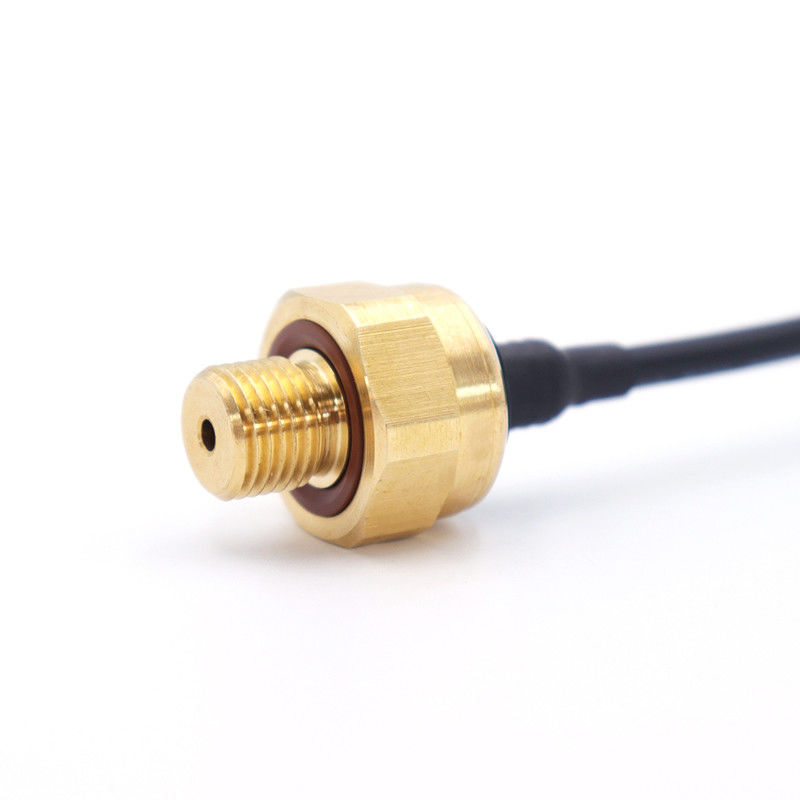

Name: 0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83ma
Price: 45.00 USD
Availability: InStock

Dom > produkty > Smart Pressure Transmitter >

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion

5.25VDC compact pressure transducer

2MPa compact pressure sensor

Ceramic Brass compact pressure transducer

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

WNK

Numer modelu:

WNK83ma

Skontaktuj się z nami

Poproś o wycenę

Product Details

Zakres ciśnienia:

0-2 MPa, 0-20 barów, 0-2000 kPa

Wyjście:

0,5–4,5 V prądu stałego

Zasilanie:

4,75–5,25 V prądu stałego

Tworzywo:

Mosiądz

Złącze procesowe:

G1/4

Złącze elektryczne:

Wyjście kablowe

Dokładność:

Nazwa produktu:

Kompaktowy czujnik ciśnienia z mosiądzu ceramicznego 0,5–4,5 V z funkcją antykorozyjną

Podkreślić:

5.25VDC compact pressure transducer

2MPa compact pressure sensor

Ceramic Brass compact pressure transducer

Payment & Shipping Terms

Minimalne zamówienie

1 sztuka

Cena

negotiable

Szczegóły pakowania

Każdy element w indywidualnym kartonie z ochroną piankową lub na życzenie klienta

Czas dostawy

8-10 dni roboczych

Zasady płatności

D/A, D/P, T/T, Western Union, Paypal

Możliwość Supply

2000 szt. Tygodniowo

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Uzyskaj najlepszą cenę

Wideo

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Uzyskaj najlepszą cenę

Wideo

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Uzyskaj najlepszą cenę

Wideo

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

Brass Pressure Sensor

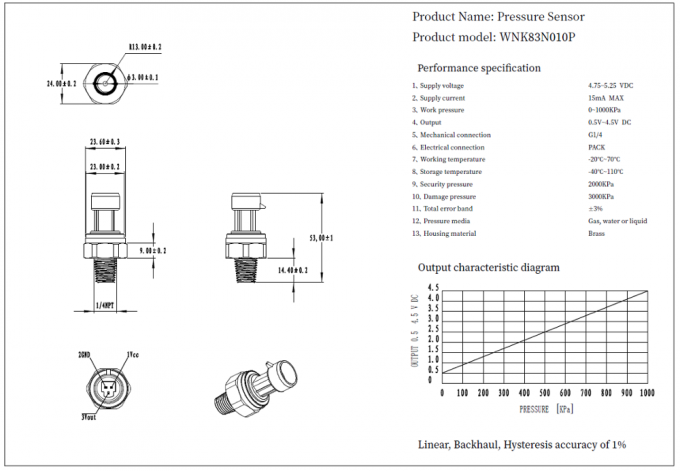

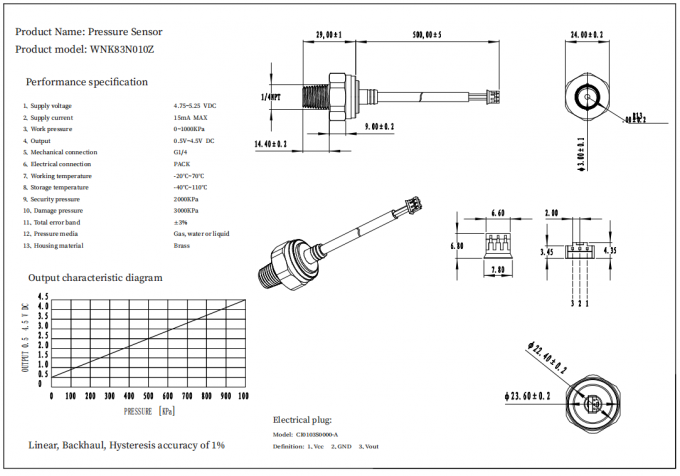

Mechanical Dimension:

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 0

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	G1/4
Housing material	Brass

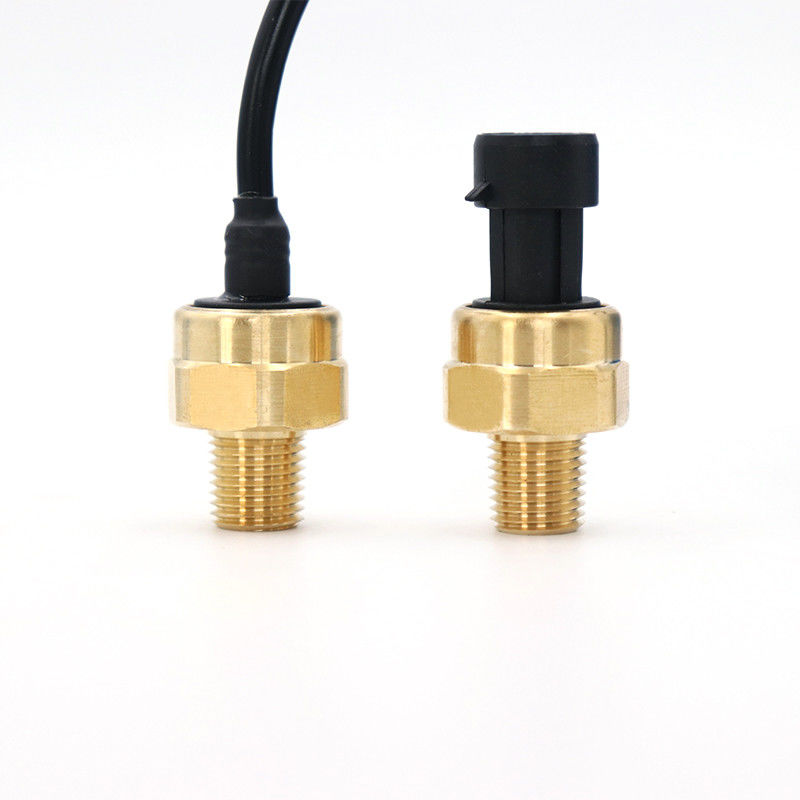

PRODUCT SHOW

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 5

Packaging

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 6

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
