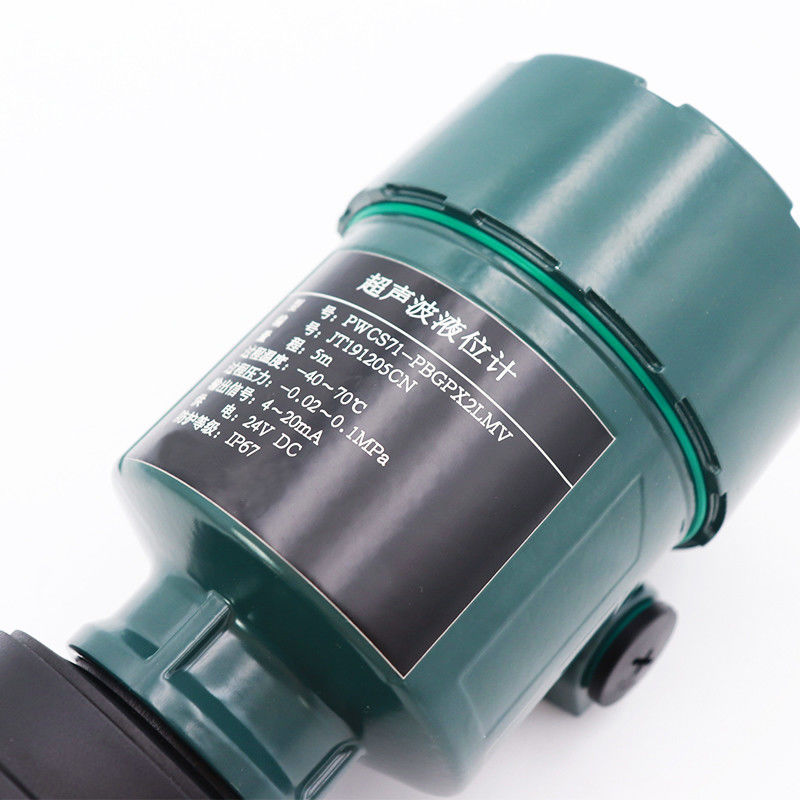

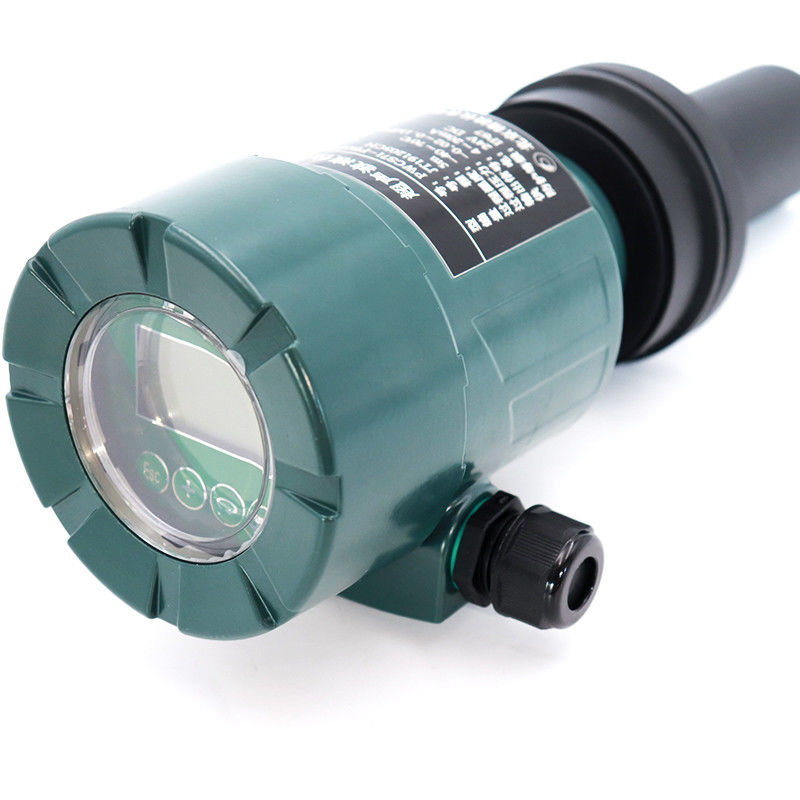

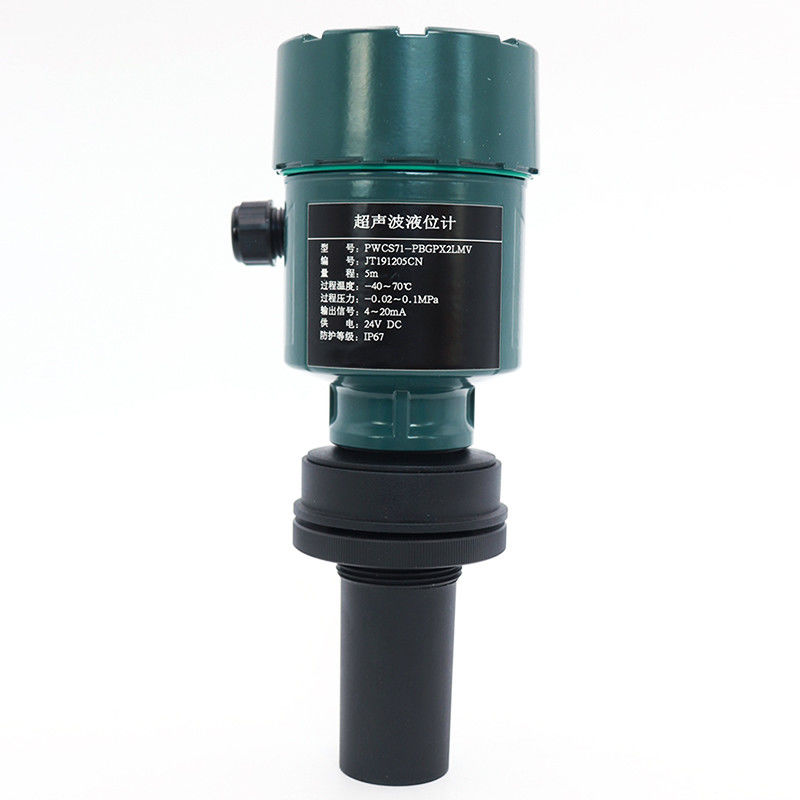

Name: 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: PWCS72
Price: 417.00 USD
Availability: InStock

Dom > produkty > Submersible Level Sensor >

10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing

10m diesel fuel level sensor

ABS housing diesel fuel level sensor

10m water tank fill sensor

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

WNK

Orzecznictwo:

Numer modelu:

PWCS72

Skontaktuj się z nami

Poproś o wycenę

10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing

Product Details

Zakres pomiarowy:

0,3-10 m

Połączenie procesowe:

G1 1/2A lub kołnierz, wspornik

Materiał obudowy:

Aluminium/ABS

Dokładność:

0.25% FS

Wyjście:

4-20 MA/HART/RS485/Modbus

Klasa przeciwwybuchowa:

Exia IIB T6 Ga

Podkreślić:

10m diesel fuel level sensor

ABS housing diesel fuel level sensor

10m water tank fill sensor

Payment & Shipping Terms

Minimalne zamówienie

1 sztuka

Szczegóły pakowania

Neutralne pakowanie kartonu lub zgodnie z Twoim wymaganiem.

Czas dostawy

5-8 dni roboczych

Zasady płatności

D/P, T/T, Western Union, Paypal

Możliwość Supply

5000/ kawałek/ miesiąc

IP68 Stainless steel Dirty Water Submersible Level Sensor

Uzyskaj najlepszą cenę

Wideo

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Uzyskaj najlepszą cenę

Wideo

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Uzyskaj najlepszą cenę

Wideo

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

Ultrasonic Level Sensor Transmitter

Aluminum Housing material

The Housing is made of aluminum with specific explosion-proof function

Two transducer options

Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment

High Technology Functions

Echo curve display functionFalse echo storage function
Frequency adjustment function
Noise filteringfunction

Wide Measuring Range and High Accuracy

Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy

Application Case

Product Paramenters

Model	Measuring Range	Process Connection	Transducer Material
PWCS71	0.25-5m	G11/2"A/Flange/Bracket	PA66+GF30/PVDF
PWCS72	0.3-10m	G2"A/Flange/Bracket	PA66+GF30/PVDF
PWCS73	0.4-10m	M66*2/Flange/Bracket	PA66+GF30/PVDF
PWCS74	0.5-20m	M95*2/Flange/Bracket	PA66+GF30

Installation Guide

The transducer shall be vertical to the medium surfaceThe equipment shall not be installed in the middle of the tank top

The installation position shall avoid obstacles as much as possible
