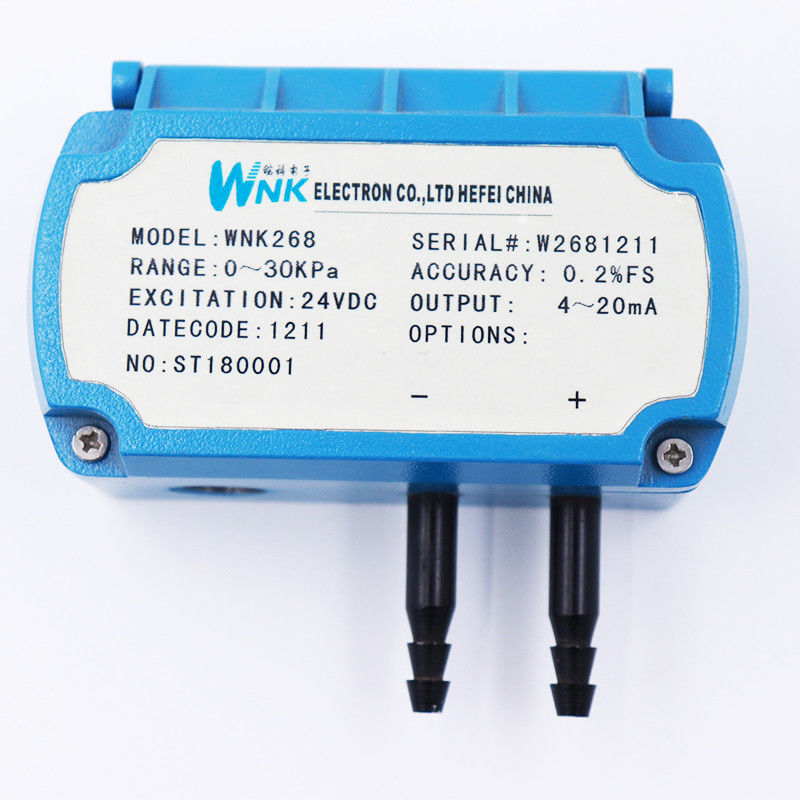

Name: macro 30KPA Electronic Differential Pressure Flow Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK268/WNK808B
Price: 45.00 USD
Availability: InStock

Dom > produkty > Smart Pressure Transmitter >

macro 30KPA Electronic Differential Pressure Flow Transmitter

30KPA electronic differential pressure transmitter

30KPA differential pressure flow transmitter

macro differential pressure level sensor

Miejsce pochodzenia:

HEFEI, CHINY

Nazwa handlowa:

WNK

Orzecznictwo:

Numer modelu:

WNK268/WNK808B

Skontaktuj się z nami

Poproś o wycenę

macro 30KPA Electronic Differential Pressure Flow Transmitter

Product Details

Numer modelu:

WNK268/WNK808B

Typ ciśnienia:

Ciśnienie miernika, ciśnienie różnicowe

Głoska bezdźwięczna:

Powietrze, gaz

Sygnał wyjściowy:

4-20mA

Zakres ciśnienia:

-100Kpa ~ 60MPa

Dokładność:

0,2%, 0,5% pełnej skali

Temperatura pracy:

-40 ~ 85 ℃

Temperatura pracy:

-10 ~ 70 ℃

Waga netto:

347,5 g

Miejsce pochodzenia:

Chiny

Podkreślić:

30KPA electronic differential pressure transmitter

30KPA differential pressure flow transmitter

macro differential pressure level sensor

Payment & Shipping Terms

Minimalne zamówienie

1 sztuka

Cena

negotiable

Szczegóły pakowania

Pudła

Czas dostawy

5-8 dni roboczych

Zasady płatności

T/T, Western Union, PayPal, karta kredytowa

Możliwość Supply

2000 sztuk tygodniowo

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Uzyskaj najlepszą cenę

Wideo

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Uzyskaj najlepszą cenę

Wideo

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Uzyskaj najlepszą cenę

Wideo

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

4-20mA Differential Pressure Transmitters For Gas Differential Pressure Measurement

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-10Pa~100Pa, -100kPa~+100kPa
Accuracy	0.2%, 0.5%
Stability	0.8%F.S./Year
Maximum static pressure	70 KPa
Max overload	250% of sensor range
Output signals	4~20mA
Housing material	Aluminum14
Induct Pressure Connection:	M 8x1 female or Ø 8 dowel connection
Power Supply	Non-explosion: 10.5~45V DC
Power Supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Compensation temperature	-10~70℃
Working temperature	-10~70℃

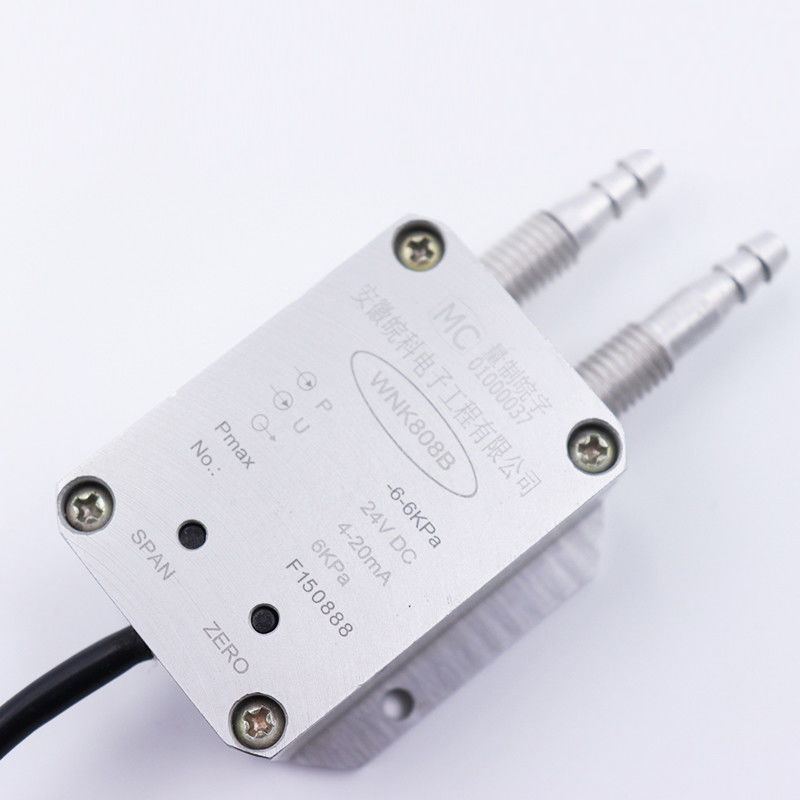

WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.

Application

It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.

Product Show

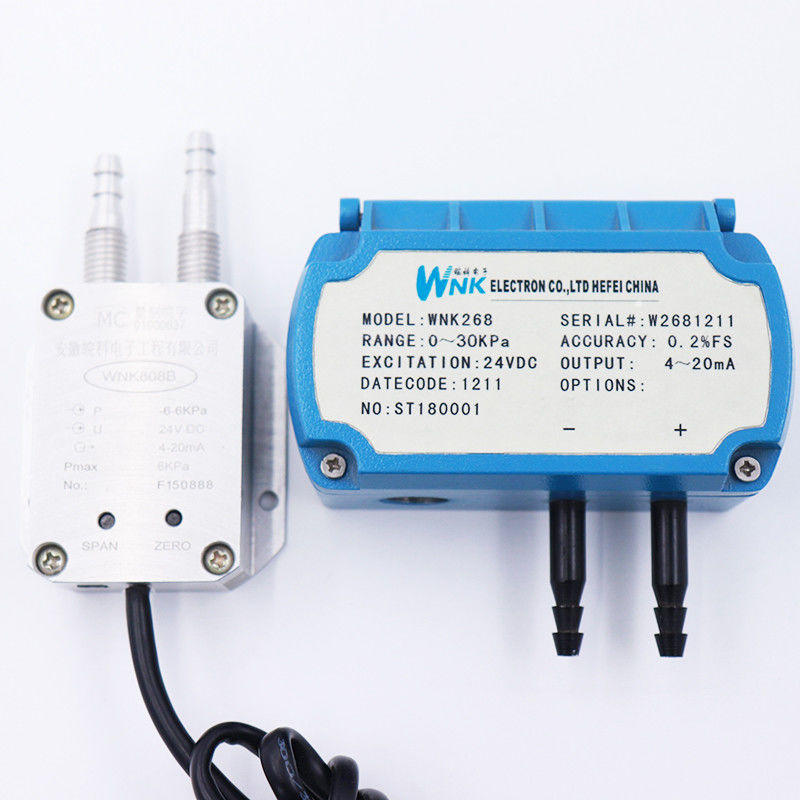

macro 30KPA Electronic Differential Pressure Flow Transmitter 0

macro 30KPA Electronic Differential Pressure Flow Transmitter 4

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
