Name: IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA-P
Price: 21.00 USD
Availability: InStock

Dom > produkty > Compact Pressure Sensor >

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

IP65 gas pressure sensor

304SST gas pressure sensor

304SST Oil Pressure Sensor

Miejsce pochodzenia:

HEFEI, CHINY

Nazwa handlowa:

WNK

Orzecznictwo:

CE, SGS, ISO9001

Numer modelu:

WNK80MA-P

Skontaktuj się z nami

Poproś o wycenę

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

Product Details

Zakres ciśnienia:

0-6 MPa

Stopień dokładności:

0,5%, 1,0% FS

Głoska bezdźwięczna:

Gaz, powietrze, woda, olej, smar

Dowód IP:

IP67

Czas reakcji:

<2ms

Moc:

5VDC, 9-30VDC

Temperatura pracy:

-40C - 40C

Podkreślić:

IP65 gas pressure sensor

304SST gas pressure sensor

304SST Oil Pressure Sensor

Payment & Shipping Terms

Minimalne zamówienie

5 sztuk

Cena

negotiable

Szczegóły pakowania

Standardowe opakowanie eksportowe

Czas dostawy

7-10 dni roboczych

Zasady płatności

T/T, Western Union, MoneyGram

Możliwość Supply

5000 szt. miesięcznie

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Uzyskaj najlepszą cenę

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

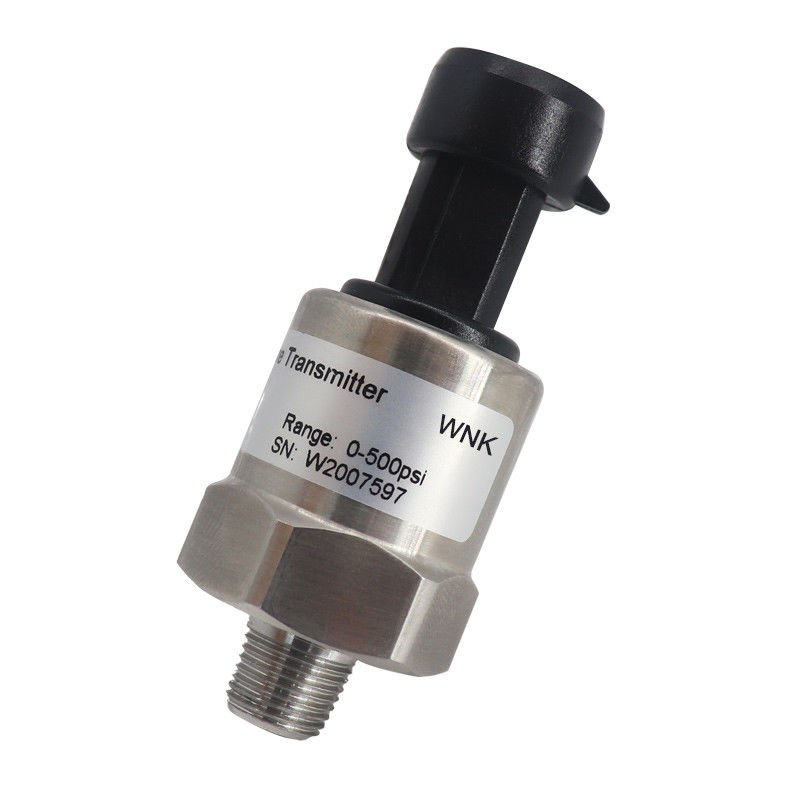

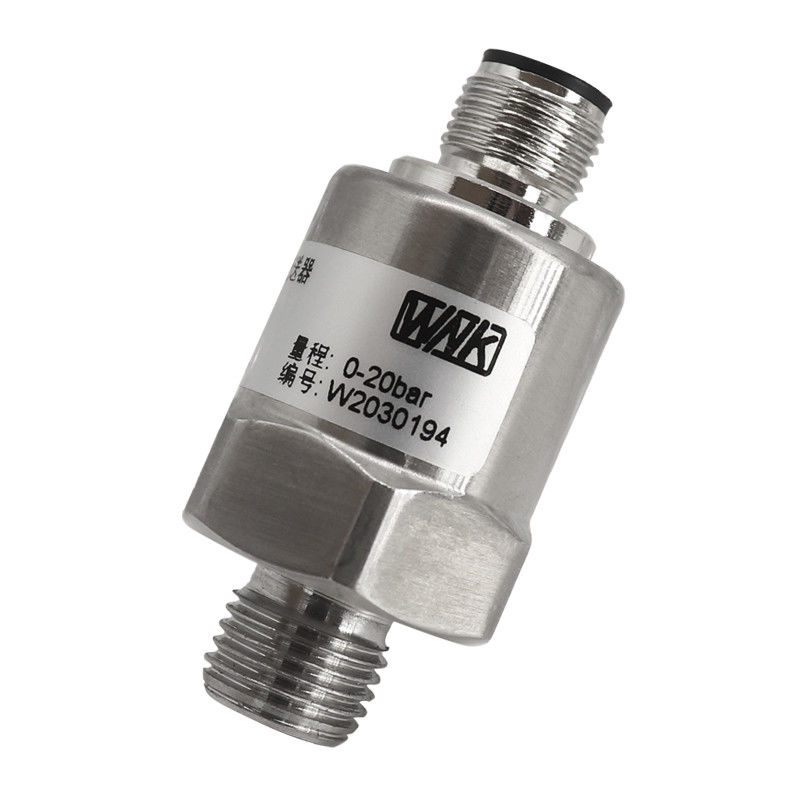

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

Quick Information

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Specifications

Applicable media	Liquid, Gas
Pressure range	0-20kPa~350bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parker joint, customization
Mechanical connection	G1/4, 1/8NPT,M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Application:

- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
