1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection

4.5VDC ceramic capacitive pressure sensor

1000kPa ceramic capacitive pressure sensor

1000kPa capacitive pressure transmitter

Miejsce pochodzenia:

Chiny (kontynentalne)

Nazwa handlowa:

WNK

Orzecznictwo:

CE

Numer modelu:

WNK83ma

Skontaktuj się z nami
Poproś o wycenę
Product Details
Dokładność:
1%
Zmierzone media:
Ciecz, gaz i para
Zakres ciśnienia:
0-1000 kPa
Sygnał wyjściowy:
0,5-4,5 VDC
Zasilanie:
4.75-5.25 VDC
Tworzywo:
Mosiądz
Połączenie procesowe:
1/4npt
Połączenie elektryczne:
Packarda
Podkreślić:

4.5VDC ceramic capacitive pressure sensor

,

1000kPa ceramic capacitive pressure sensor

,

1000kPa capacitive pressure transmitter

Payment & Shipping Terms
Minimalne zamówienie
1 szt
Cena
negotiable
Szczegóły pakowania
Standardowe pudełko kartonowe eksportowe
Czas dostawy
5-8 dzień pracy
Zasady płatności
T/T, Western Union
Możliwość Supply
5000+sztuka+miesięcznie
Product Description
Product Description

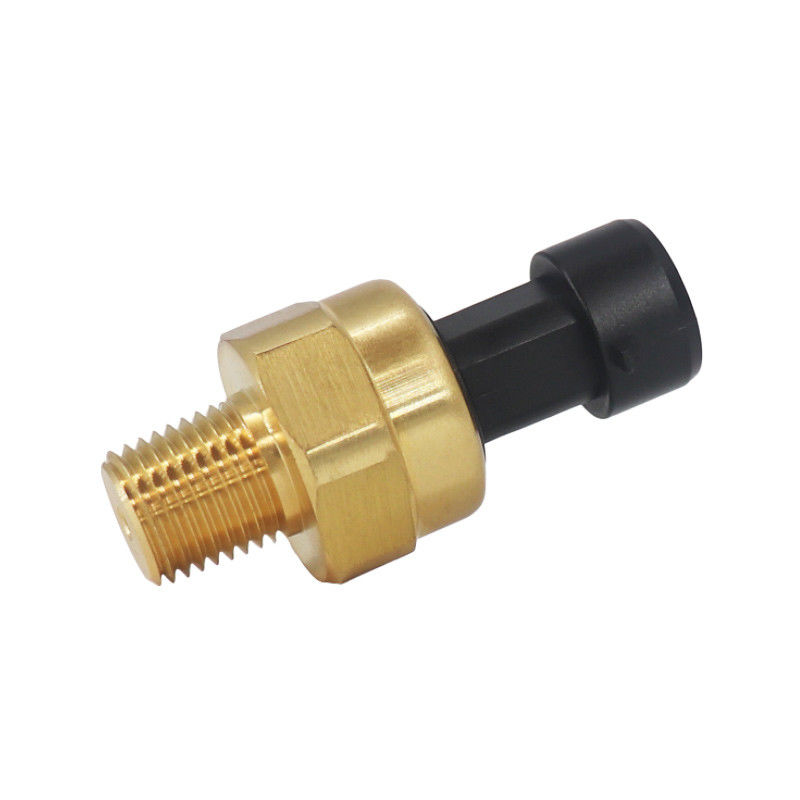

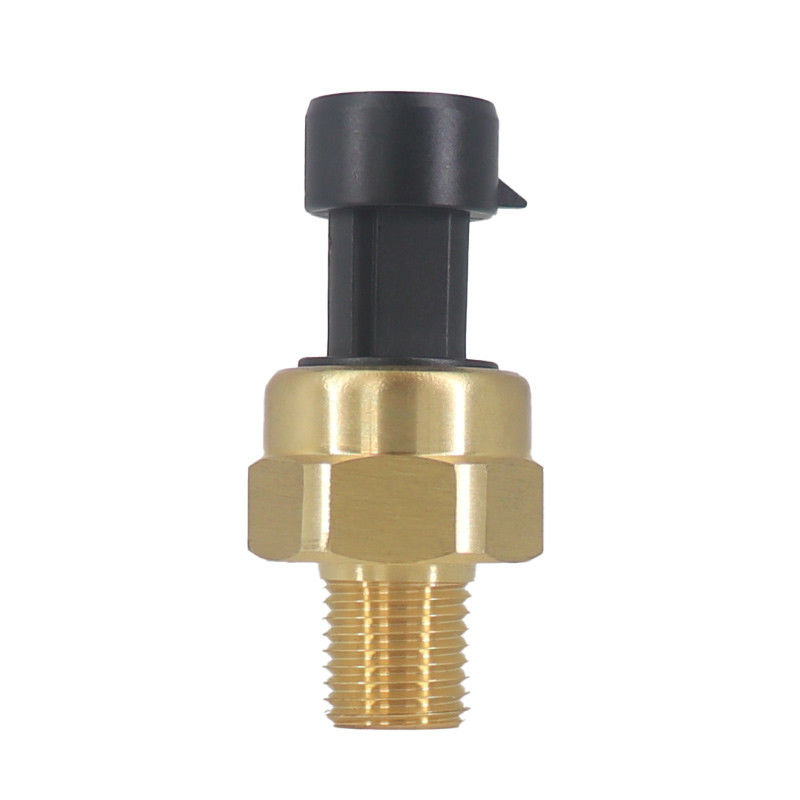

Brass Ceramic Capacitance Pressure Sensor With 0.5-4.5 VDC Output Signal

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.


Applicable media Liquid, gas and steam
Pressure range 0-1000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection packard
Mechanical connection 1/4 NPT
Housing material Brass

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 0
1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 11000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 2

Company Information

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 3

Factory

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 4

Exhibition

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 5

Our Certificate

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 6

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
