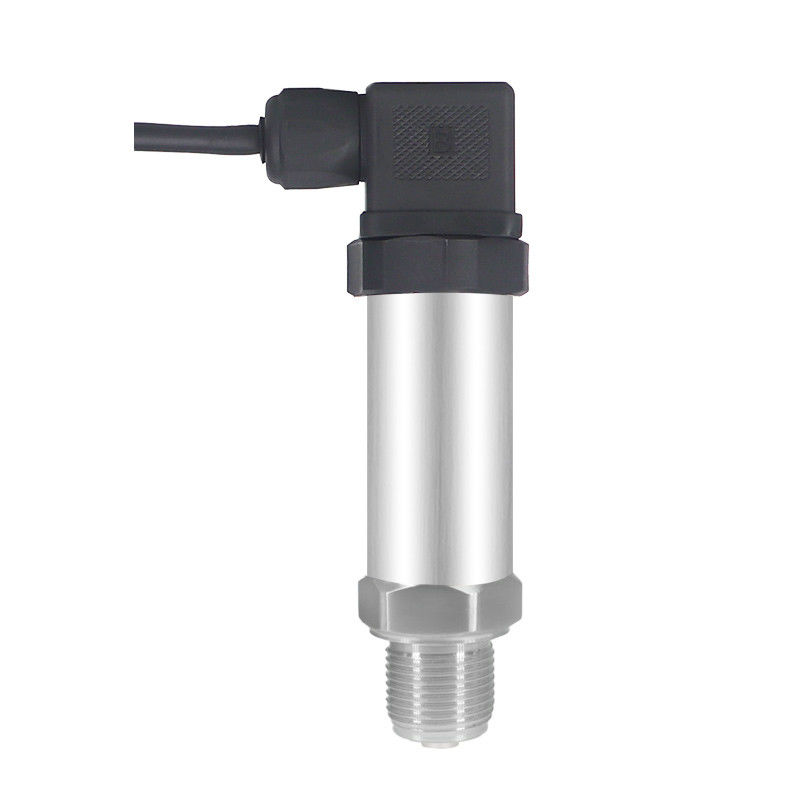

4-20MA OEM ODM Hydraulic Pressure Transmitter For Liquid Air Water Steam
WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.
WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.
Quick information:
- High performance piezoresistive silicon pressure sensor
- Optional 4~20mA, 0~5V, 1~5V, 0~10V outputs
- OEM, ODM & customization available
- Stainless steel 316L housing
- Intrinsic safety and explosion-proof certificates
- High protection: IP65
- Suitable for air, steam, water and fuel oil application
Detailed Technical Info:
| Compact Pressure Transmittter with SS304 Housing |
| Pressure range |
0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa |
| Rangedown |
100:1 |
| Permissible temperature |
Compensation Temperature |
Media Temperature |
Environment Temperature |
Storage Temperature |
| -30~70℃ |
-20~85℃ |
-20~85℃ |
-45~85℃ |
| Accuracy |
0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS |
| Output signals |
4~20mA, 0~5V, 1~5V, 0~10V |
| Long-term stability |
0.25%FS/year |
| Power supply |
24VDC |
| Protection class |
IP65 |
| Electrical connection |

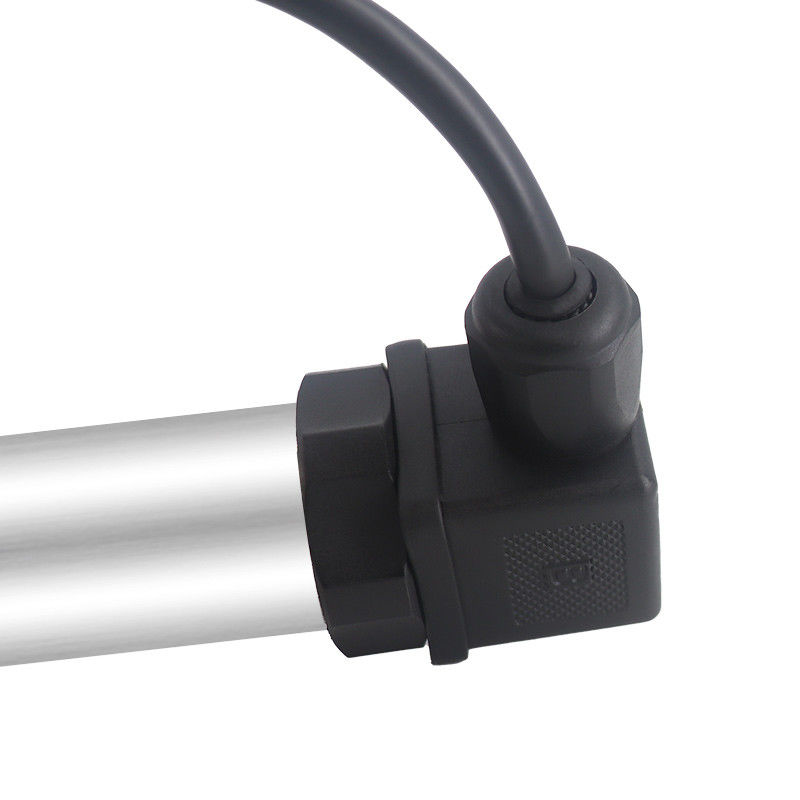

DIN43650, M12, Direct lead, Small Hirschman |
| Mechanical connection |
G1/2, M20*1.5,1/2NPT,1/4NPT,customization |
| Repeat |
0.05, 0.1%FS |
| Overload |
1.5~2 times |
| Housing material |
SS304 |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Company
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
