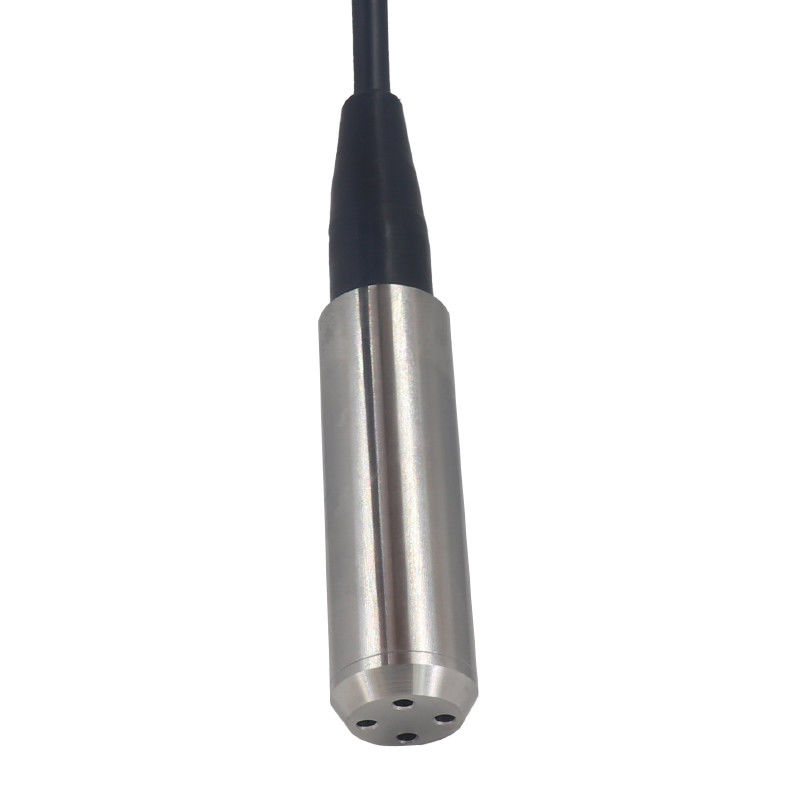

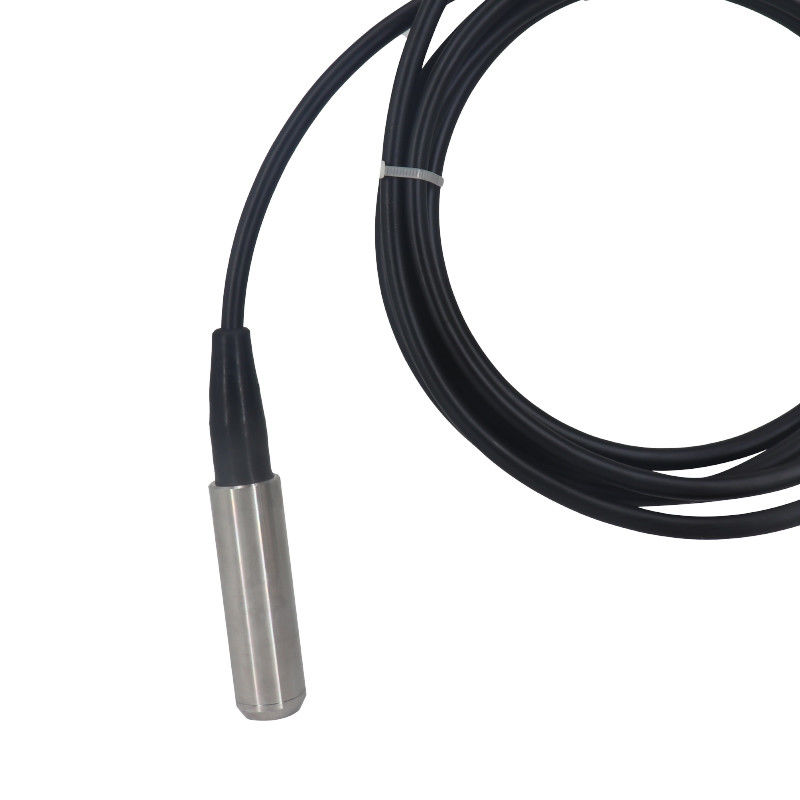

RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank

20MA Submersible Level Sensor

RS485 Submersible Level Sensor

RS485 submersible pressure transducer

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

WNK

Orzecznictwo:

Numer modelu:

WNK8010-TT

Skontaktuj się z nami

Poproś o wycenę

RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank

Product Details

Analog:

4-20 mA, 1-5 V, 0,5-4,5, 0-5 V, 0-10 V, I2C

Cyfrowy:

Hart, RS485 itp

Zakres miary:

0-1 ~ 200mh2o

Głoska bezdźwięczna:

Płyn, woda

Dokładność:

±0,25% FS/rok, ±0,5% FS/rok

Materiał obudowy:

Stal nierdzewna

Zasilanie:

24 V/12 V/5 V/3,3 V

Ochrona:

IP68

Podkreślić:

20MA Submersible Level Sensor

RS485 Submersible Level Sensor

RS485 submersible pressure transducer

Payment & Shipping Terms

Minimalne zamówienie

1 sztuka

Cena

negotiable

Szczegóły pakowania

standardowy pakiet eksportowy

Czas dostawy

5-8 dni roboczych

Zasady płatności

T/T, Western Union, Paypal

Możliwość Supply

5000 sztuk miesięcznie.

IP68 Stainless steel Dirty Water Submersible Level Sensor

Uzyskaj najlepszą cenę

Wideo

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Uzyskaj najlepszą cenę

Wideo

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Uzyskaj najlepszą cenę

Wideo

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

4-20MA Stainless Steel Liquid Water Sensor Level For Water Tank

Product Description
1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.
2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.

Output signals
Output	4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range	0-0.5~200mH₂O
Max overload	150% of sensor range
Parameters
Applicable media	Liquid, Water
Accuracy	±0.2% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank 0

Packaging & Shipping

RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank 2

Company Information

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
