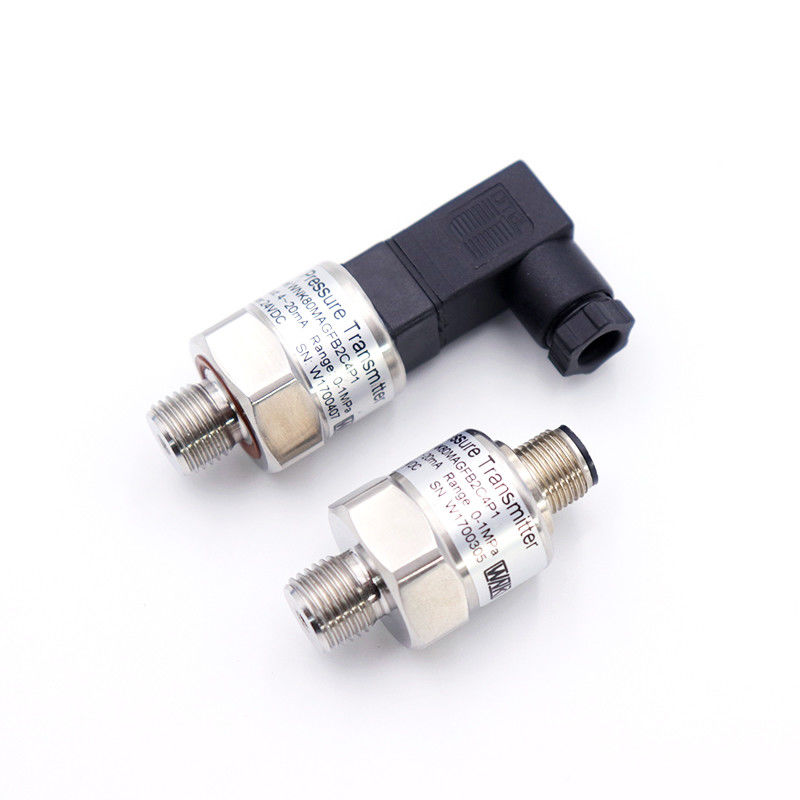

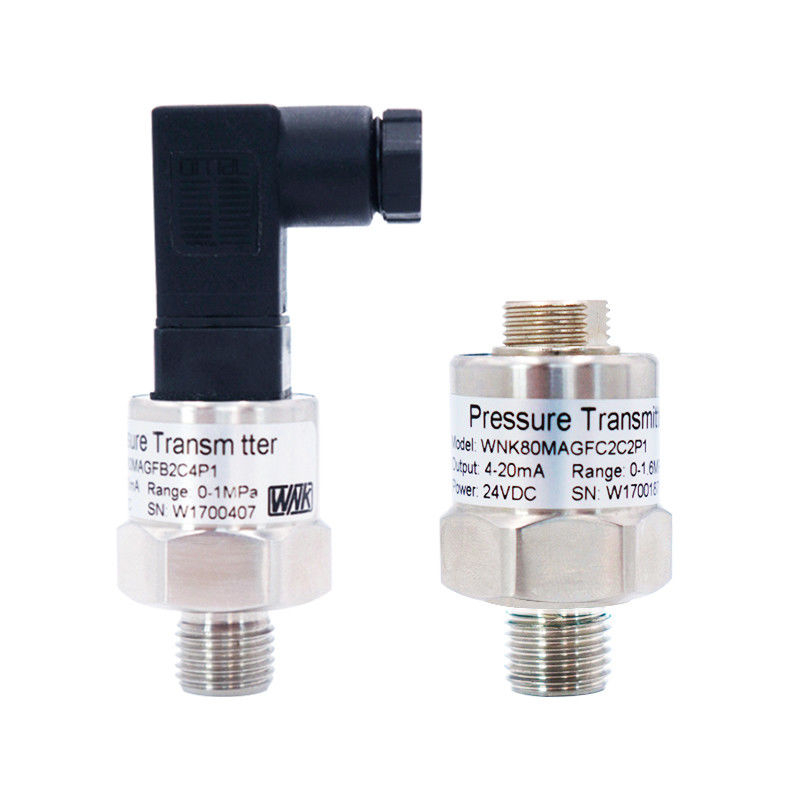

Name: Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

Dom > produkty > Compact Pressure Sensor >

Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor

SS304 Miniature Pressure Sensor

IP67 Miniature Pressure Sensor

100kPa Water Pump Pressure Sensor

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

WNK

Orzecznictwo:

Numer modelu:

WNK80MA

Skontaktuj się z nami

Poproś o wycenę

Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor

Product Details

Tworzywo:

SS304

Wyjście:

4-20mA/0-5V/0-10V/0,5-4,5vdc

Klasa produkcyjna:

IP67

Połączenie procesowe:

G1/4 (M), NPT1/4, 1/8

Dostosowane:

Tak

Zmierzone media:

Ciecz, gaz, para, olej, powietrze

Temperatura pracy:

-40-125°C

Pomiar ciśnienia:

Ciśnienie manometryczne, ciśnienie uszczelnienia

Podkreślić:

SS304 Miniature Pressure Sensor

IP67 Miniature Pressure Sensor

100kPa Water Pump Pressure Sensor

Payment & Shipping Terms

Minimalne zamówienie

1 sztuka

Cena

negotiable

Szczegóły pakowania

Neutralne pakowanie kartonu lub zgodnie z Twoim wymaganiem.

Czas dostawy

5-8 dni roboczych

Zasady płatności

D/P, T/T, Western Union, Paypal

Możliwość Supply

5000/ kawałek/ miesiąc

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Uzyskaj najlepszą cenę

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor

Product Description

Applicable media	Liquid, Gas
Pressure range	0-100kPa~150bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel
Protection	IP65

Features:

•Specific high performance ASIC conditioning circuit;
•Dry ceramic capacitive pressure sensor;

•Robust ceramic capacitive sensitive membrane;

•Excellent anti-corrosive and anti-wear performance;

•Suitable for pollution and corrosive environment;

•Various electrical connectors optional;

•Rapid response, no hysteresis;

•Wide operating temperature range -40~135℃;

•Anti-icing;

•0.5…4.5V and 4…20mA analog output or I2C and SPI digital output;

•Accurate, stable and reliable;

Product Show

Company Information

Factory

Exhibition

Our Certificate

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
