3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor

3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor

Ultrasonic Submersible Level Sensor

2 Wire Submersible Level Sensor

0.1MPa Wastewater Level Sensor

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

WNK

Orzecznictwo:

CE

Numer modelu:

WNK-YTS56

Skontaktuj się z nami
Poproś o wycenę
Product Details
Wyjście analogowe:
2-przewodowe obciążenie 4 ~ 20 mA / 250 Ω, 4-przewodowe obciążenie 4 ~ 20 mA / 510 Ω
Zasilanie:
24 V prądu stałego
Presja procesu:
-0.02-0.1MPA
Wielkość instalacji:
Gwint LUB kołnierz
Wyjście cyfrowe:
Opcjonalnie 485, 232
Rezolucja:
3 mm lub 0,1%
Klasa ochrony:
Wyświetlacz -20 ~ + 60 ℃, sonda -20 ~ + 80 ℃
Zakres pomiarowy:
0,5% ~ 1,0%
Podkreślić:

Ultrasonic Submersible Level Sensor

,

2 Wire Submersible Level Sensor

,

0.1MPa Wastewater Level Sensor

Payment & Shipping Terms
Minimalne zamówienie
1 sztuka
Szczegóły pakowania
Neutralne pakowanie kartonu lub zgodnie z Twoim wymaganiem.
Czas dostawy
5-8 dni roboczych
Zasady płatności
D/P, T/T, Western Union, Paypal
Możliwość Supply
5000/ kawałek/ miesiąc
Product Description

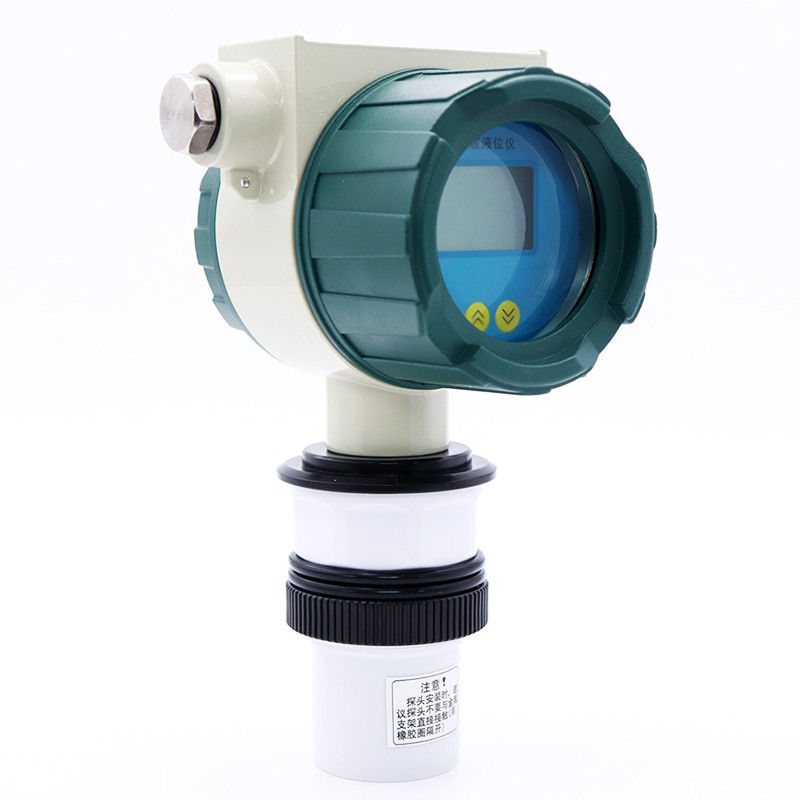

2 Wire 4-20mA Ultrasonic Liquid Fuel Water Level Sensor /Meter

Product Description

The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries





Features Integrated
Range 5m, 10m, 15m,20m,30m,40m,50m,60m
Measurement accuracy 0.5%-1.0%
Resolution 3mm or 1%(whichever is greater)
Display chinese Led or English Led
Analog output 2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load
Digital output Optional 485, 232
Relay output Optional 2 sets of AC 250V / 5A or DC 30V / 5A
Powered Standard 24VDC, optional 220V AC + 15% 50HZ
Ambient temperature Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃
Protection class Display instrument IP65, probe IP68
Probe Cable No
Installation size Thread or flange



3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor 03mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor 1

Company Information

3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor 2

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
