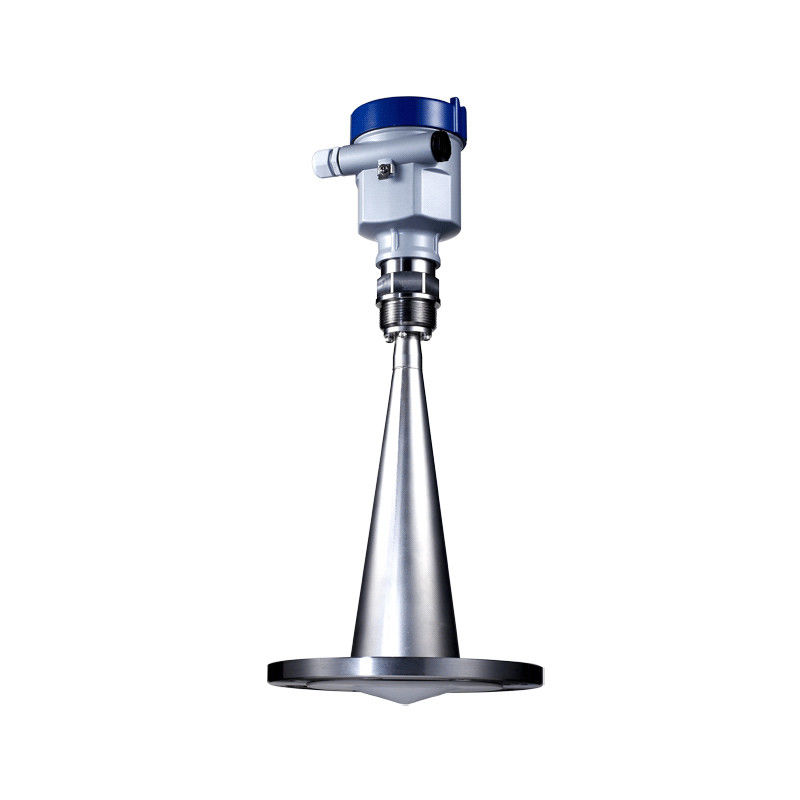

Name: High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNKGDRD
Price: 800 USD
Availability: InStock

Dom > produkty > Submersible Level Sensor >

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

stainless steel level sensor

liquid level sensor

26GHz Submersible Level Sensor

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

WNK

Numer modelu:

WNKGDRD

Skontaktuj się z nami

Poproś o wycenę

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

Product Details

Aplikacja:

Zbiornik

Dokładność:

±15 mm

Zakres miary:

70m

Presja procesu:

-0,1 ~ 4 MPa

Częstotliwość:

26G Hz

Temperatura procesu:

-40 ~ 400 ℃

Wyjście:

4-20mA/HART

Zasilanie:

2 przewody (DC 24 V), 4 przewody (DC 24 V/AC220 V)

LCD:

Fakultatywny

Podkreślić:

stainless steel level sensor

liquid level sensor

26GHz Submersible Level Sensor

Payment & Shipping Terms

Minimalne zamówienie

1 zestaw

Cena

USD800 per set

Szczegóły pakowania

Karton

Czas dostawy

5-8 dni roboczych

Zasady płatności

T/T, Western Union, PayPal, karta kredytowa

Możliwość Supply

200 zestawów/zestawów na miesiąc Wysoka dokładność Radarowy miernik poziomu nadajnika 26 GHz

IP68 Stainless steel Dirty Water Submersible Level Sensor

Uzyskaj najlepszą cenę

Wideo

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Uzyskaj najlepszą cenę

Wideo

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Uzyskaj najlepszą cenę

Wideo

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

Principle:

The antenna of radar level instrument transmits a very narrow microwave pulse which propagates at the speed of light in space.

When meeting the dielectric surface to be measured, part of its energy is reflected and received by the same antenna. The time interval of transmitting and receiving pulses is proportional to the distance between antenna and dielectric surface to be measured, and therefore the distance between antenna and dielectric surface to be measured can be calculated.

Features:

-Small beam angle (min 5º), centralized energy and stronger antijamming capability which have significantly improved the measurment accuracy and reliability;

-Small antenna size which facilitates installation and addition of protective devices for antenna such as a dust-proof cover;

-Smaller unmeasurable zone which can help to obtain good results for measuing small tanks;

-Shorter wavelength which is more suitable for level measurement of small particulate matters.

Company Introduction:

FAQ:

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient

pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
