Name: Electronic LED Display Liquid Water Pressure Transmitter IP65 Stainless Steel Shell Structure
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 45.00 USD
Availability: InStock

Dom > produkty > Smart Pressure Transmitter >

Electronic LED Display Liquid Water Pressure Transmitter IP65 Stainless Steel Shell Structure

smart type pressure transmitter

digital pressure transmitter

Miejsce pochodzenia:

Anhui, Chiny

Nazwa handlowa:

WNK

Orzecznictwo:

ISO,Exia

Numer modelu:

WNK805

Skontaktuj się z nami

Poproś o wycenę

Product Details

Zmierz media:

Ciecz, gaz i para

Sygnały wyjściowe:

4 ~ 20mA, 1-5 V.

Dokładność:

0,2%, 0,25%,

Zakres ciśnienia:

-100 kPa ~ 0, 0-10 kPa, 100 kPa...... 70 MPa

Klasa ochrony:

IP65

Materiał obudowy:

Stal nierdzewna 304 (standardowa)

Zasilanie:

10,5 ~ 30 V prądu stałego

Aplikacja:

Pomiar ciśnienia

Wyświetlacz:

LED (opcjonalnie)

Membrana:

316L

Podkreślić:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Standardowe opakowanie kartonowe eksportowe

Czas dostawy

3 ~ 5 dni roboczych

Zasady płatności

T/T, Western Union, MoneyGram

Możliwość Supply

200 zestawów/dzień

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Uzyskaj najlepszą cenę

Wideo

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Uzyskaj najlepszą cenę

Wideo

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Uzyskaj najlepszą cenę

Wideo

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

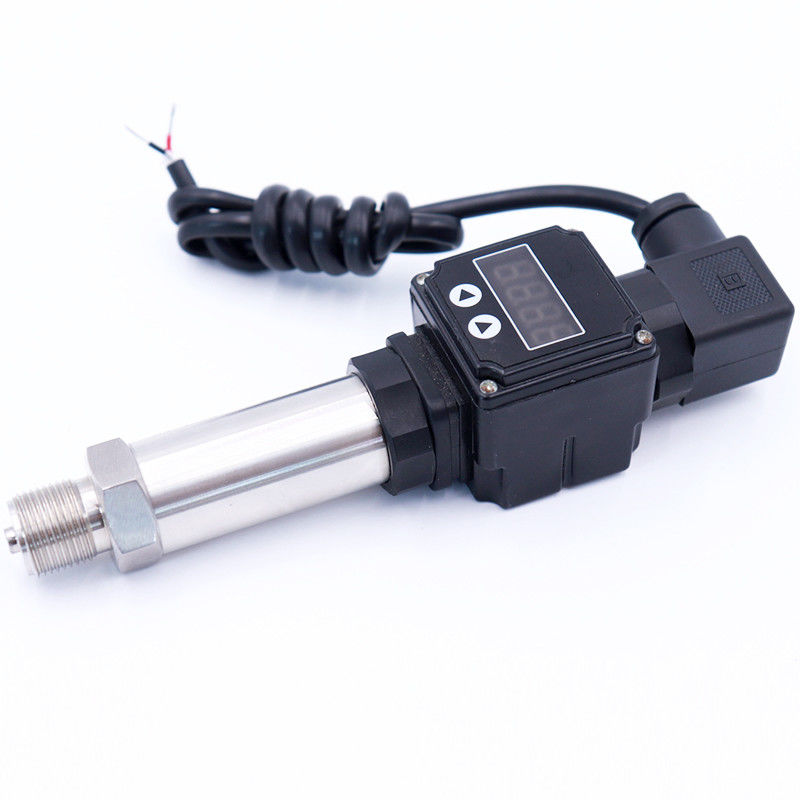

Electronic LED Display Liquid Water Pressure Transmitter

Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement

Technical data

Applicable media	Liquid, Gas, Steam
Pressure range	-100KPa~0, 0-0.2~-100kPa, 0-0.2~1000kpa, -1bar ~70MPa
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Output signals	4~20mA, 1-5V for optional
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize, G1/2 Flush diaphragm, Clamp
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5～30 V DC
Ambient temperature	－40～85℃
Process temperature	－40～85℃
Compensation temperature	－10～70℃

Dimension

Electronic LED Display Liquid Water Pressure Transmitter IP65 Stainless Steel Shell Structure 0

Electronic LED Display Liquid Water Pressure Transmitter IP65 Stainless Steel Shell Structure 1
