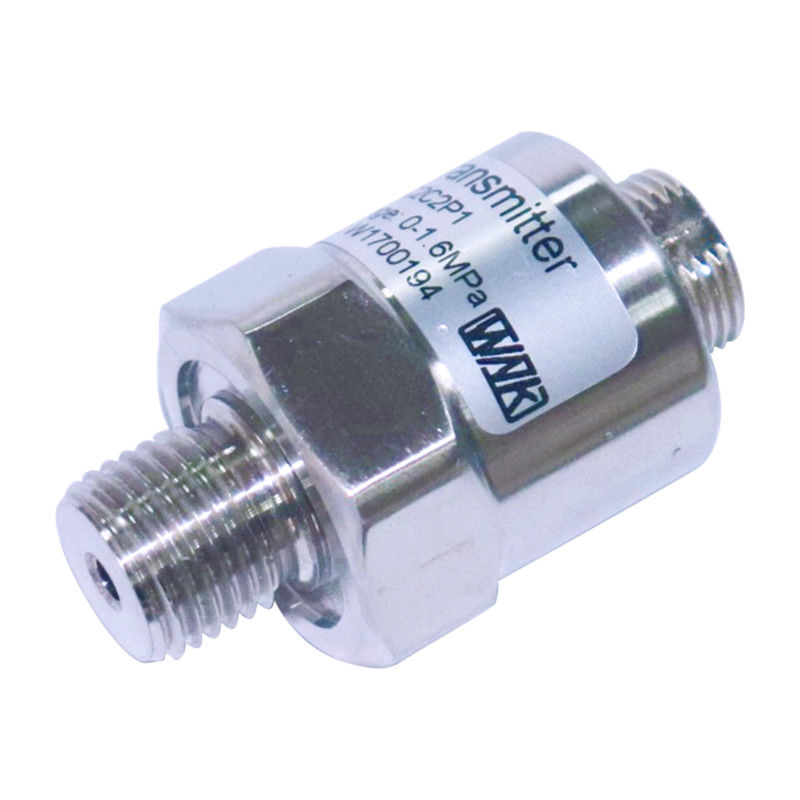

Compact Structure Air Conditioner Pressure Sensor / I2C Mini Pressure Sensor

mini pressure sensor

air pressure transmitter

Miejsce pochodzenia:

HEFEI, CHINY

Nazwa handlowa:

WNK

Orzecznictwo:

CE, SGS, ISO9001

Numer modelu:

WNK80MA

Skontaktuj się z nami

Poproś o wycenę

Compact Structure Air Conditioner Pressure Sensor / I2C Mini Pressure Sensor

Product Details

Zakres ciśnienia:

-1bar - 60 MPa

Wyjście:

I2C, SPI, 0,5-4,5V, 4-20ma i inne

Czas odpowiedzi:

≥1 ms

Przeciążenie ciśnienie:

3-5 razy

Tworzywo:

304SS 316SS

Średnia temperatura:

-40 -70

Gwarancja:

12 miesięcy

Dokładność:

0,25% pełnej skali, 0,5% pełnej skali, 1,0% pełnej skali

Połączenie elektryczne:

Packard, M12x1, Mini DIN43650, inne

Podkreślić:

mini pressure sensor

air pressure transmitter

Payment & Shipping Terms

Minimalne zamówienie

5 sztuk

Cena

negotiable

Szczegóły pakowania

Opakowanie zdatne do transportu morskiego lub opakowanie zdatne do lotu

Czas dostawy

7-10 dni roboczych

Zasady płatności

T/T, Western Union, MoneyGram

Możliwość Supply

5000 szt. miesięcznie

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Uzyskaj najlepszą cenę

Wideo

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

Uzyskaj najlepszą cenę

Wideo

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Uzyskaj najlepszą cenę

Wideo

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

I2C Compact Structure Air Conditioner Pressure Sensor

Name: Compact Structure Air Conditioner Pressure Sensor / I2C Mini Pressure Sensor
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 20.00 USD
Availability: InStock

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function.

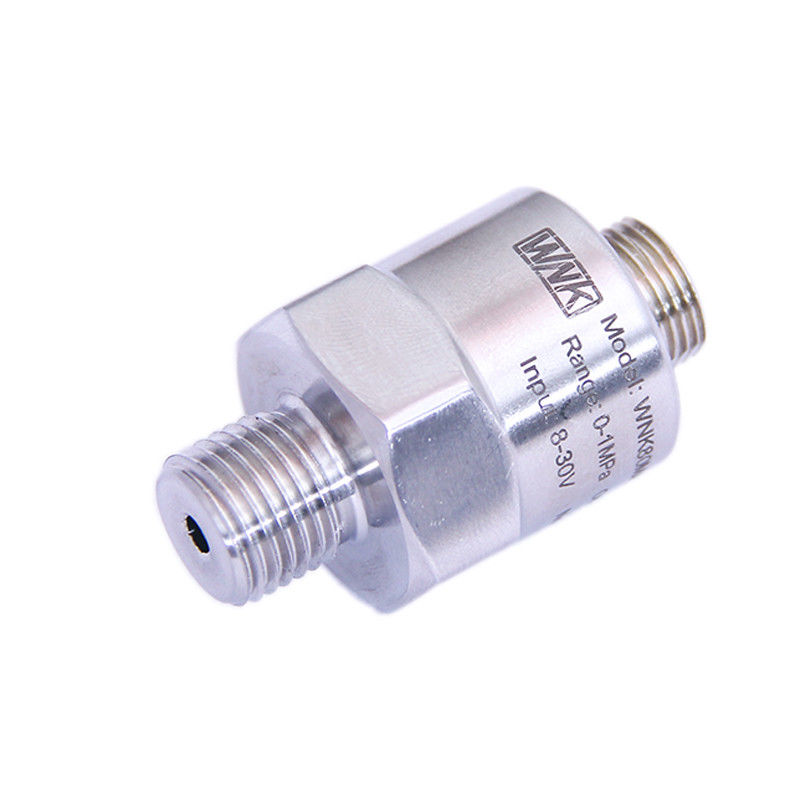

Compact Structure Air Conditioner Pressure Sensor / I2C Mini Pressure Sensor 0

Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

Features :

1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble

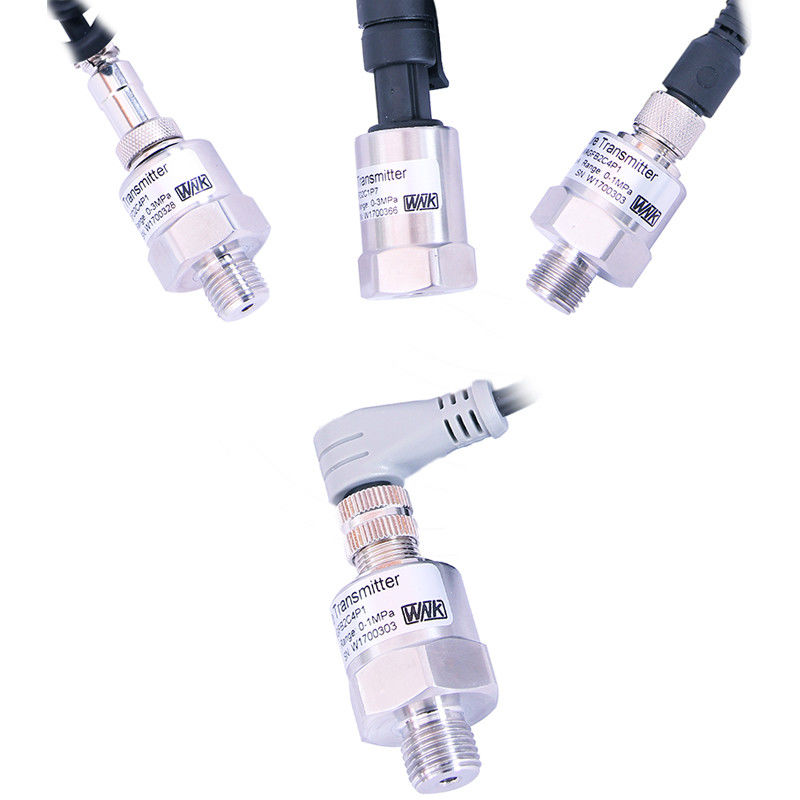

6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female

Technical Data

Input
Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	-100Kpa - 60Mpa
Accuracy	0.2%, 0.5%
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital	I²C, SPI
Operation Condition and Temperature
Compensation Temperature	-20...75℃
Storage Temperature	-45 ... 85℃
Ambient Temperature	-45 ... 85℃
Medium Temperature	-40 ... 125℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L

Company Information

Factory

Exhibition

Our Certificate

Compact Structure Air Conditioner Pressure Sensor / I2C Mini Pressure Sensor 7

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
