Name: Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83ma
Price: 20.00 USD
Availability: InStock

Dom > produkty > Air Pressure Sensor >

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

mini pressure sensor

air pressure transmitter

Miejsce pochodzenia:

Chiny (kontynentalne)

Nazwa handlowa:

WNK

Orzecznictwo:

Numer modelu:

WNK83ma

Skontaktuj się z nami

Poproś o wycenę

Product Details

Dokładność:

Zmierzone media:

Ciecz, gaz i para

Zakres ciśnienia:

0-2000 kPa

Sygnał wyjściowy:

0,5-4,5 VDC

Zasilanie:

4.75-5.25 VDC

Temperatury robocze:

-20 do 70 ℃

Połączenie procesowe:

G1/4

Połączenie elektryczne:

Wyjście kablowe

Maksymalny prąd:

15ma

Media pomiarowe:

Gaz, woda lub ciecz

Podkreślić:

mini pressure sensor

air pressure transmitter

Payment & Shipping Terms

Minimalne zamówienie

1 szt

Cena

negotiable

Szczegóły pakowania

Standardowe pudełko kartonowe eksportowe

Czas dostawy

5-8 dzień pracy

Zasady płatności

T/T, Western Union

Możliwość Supply

5000+sztuka+miesięcznie

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Uzyskaj najlepszą cenę

Wideo

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

Uzyskaj najlepszą cenę

Wideo

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Uzyskaj najlepszą cenę

Wideo

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

Product Description

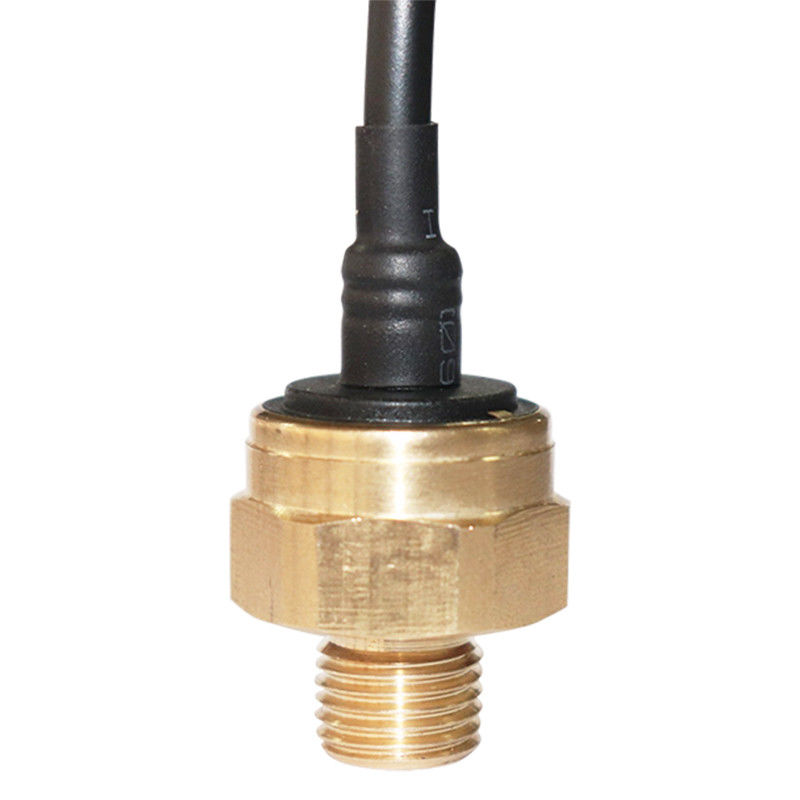

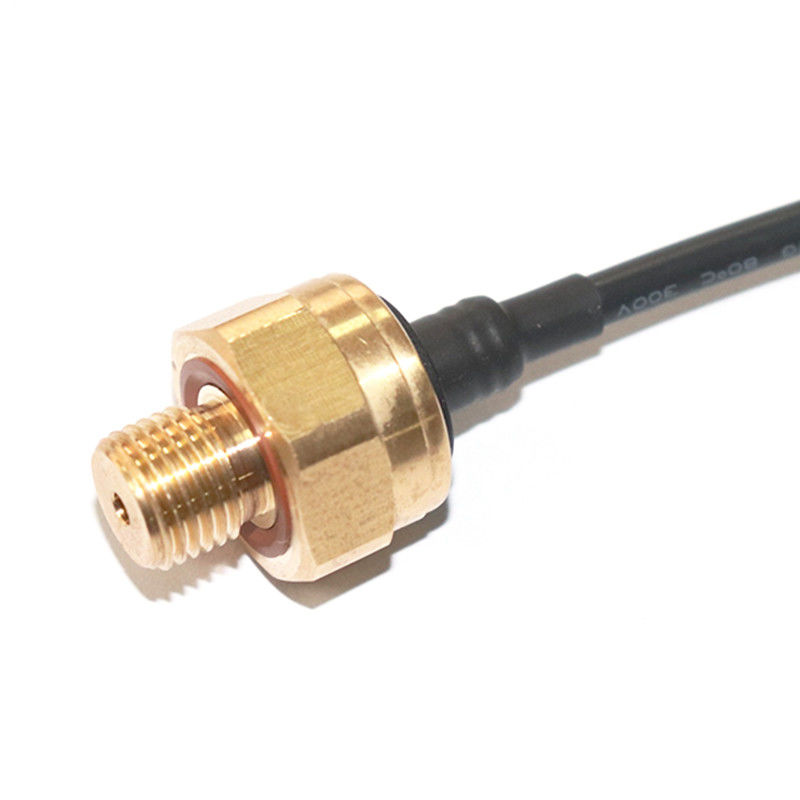

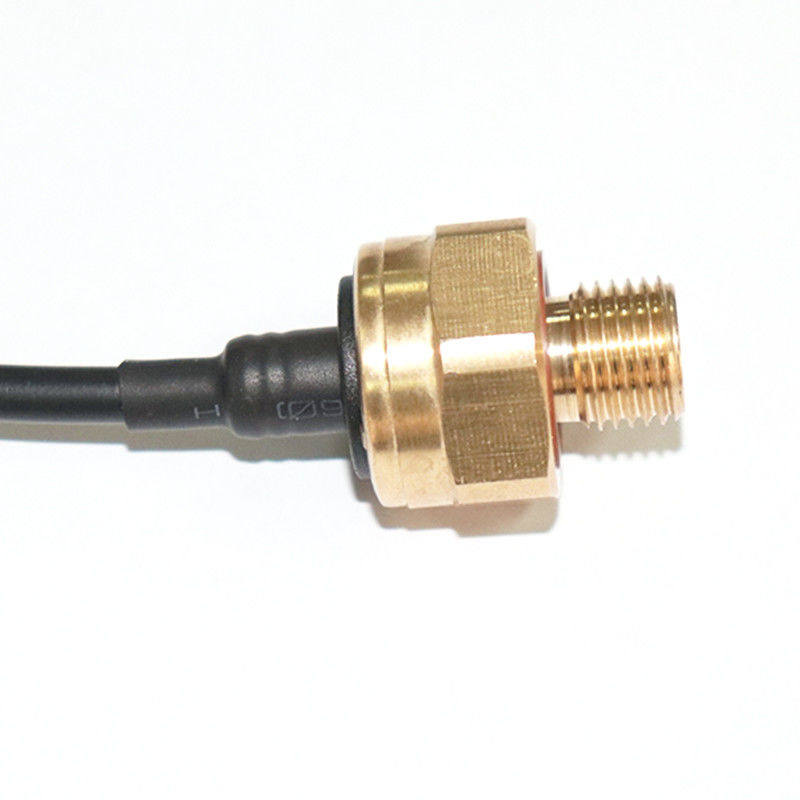

Brass cable outlet 15mA max pressure sensor for water liquid tank

As a brass practical pressure transmitter, WNK83mA G quarter cable outlet has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25 voltage DC and the maximum supply current is 15 milliamp, besides the voltage output is 0.5-4.5voltage DC. It can withstand strong working pressures up to 2000kpa. Its linearity,hysteresis,repetitiveness accuracy is 1%. It can act on gas, water or liquid and has strong stability.

Applicable media	Liquid, gas and steam
Pressure range	0-2000kPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~70ºC
Ambient temperature	-40~110ºC
Working temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Cable outlet
Mechanical connection	G1/4
Housing material	Brass

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 1

Company Information

Factory

Exhibition

Our Certificate

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 8

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
