0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

mini pressure sensor

air pressure transmitter

Miejsce pochodzenia:

Chiny (kontynentalne)

Nazwa handlowa:

WNK

Orzecznictwo:

CE

Numer modelu:

WNK83ma

Skontaktuj się z nami
Poproś o wycenę
Product Details
Dokładność:
1%
Zmierzone media:
Ciecz, gaz i para
Zakres ciśnienia:
0-2000 kPa
Sygnał wyjściowy:
0,5-4,5 VDC
Zasilanie:
4.75-5.25 VDC
Temperatury robocze:
-20 do 70 ℃
Tworzywo:
Mosiądz
Połączenie procesowe:
G1/4
Połączenie elektryczne:
Wyjście kablowe
Funkcja:
Odporność na korozję, odporność na wstrząsy
Podkreślić:

mini pressure sensor

,

air pressure transmitter

Payment & Shipping Terms
Minimalne zamówienie
1 szt
Cena
negotiable
Szczegóły pakowania
Standardowe pudełko kartonowe eksportowe
Czas dostawy
5-8 dzień pracy
Zasady płatności
T/T, Western Union
Możliwość Supply
5000+sztuka+miesięcznie
Product Description
Product Description

4.75-5.25 VDC Power supply G1/4 Cable outlet Pressure Sensor 0-2000kPa

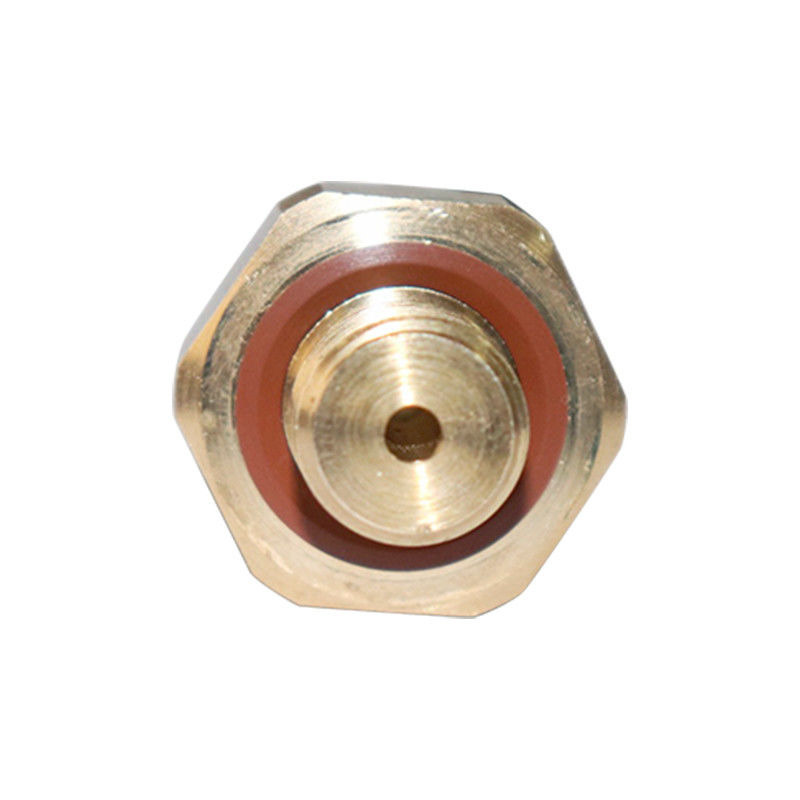

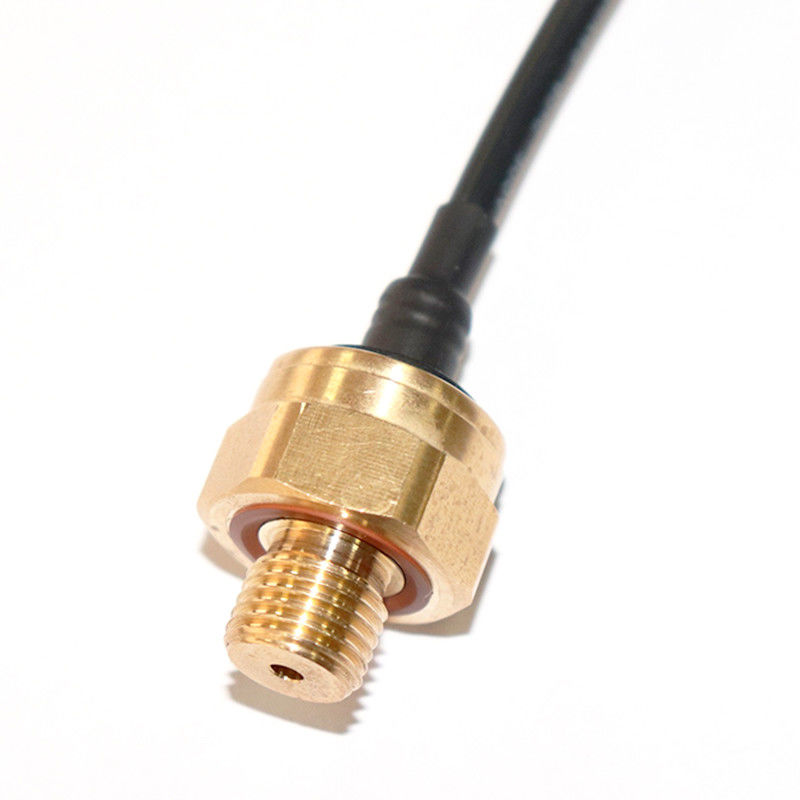

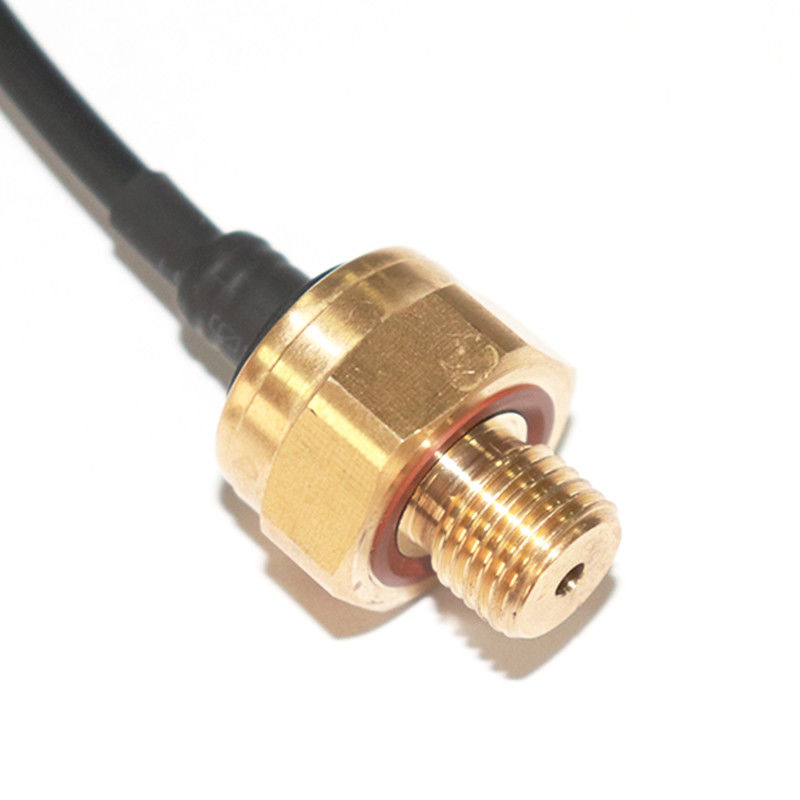

As a brass practical pressure transmitter, WNK83mA G quarter cable outlet has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25 voltage DC and the maximum supply current is 15 milliamp It can withstand strong working pressures up to 2000kpa. Its linearity,hysteresis,repetitiveness accuracy is 1%. It can act on gas, water or liquid and has strong stability.


Applicable mediaLiquid, gas and steam
Pressure range0-2000kPa
CellCeramic capacitive pressure sensor
Pressure measurmentGauge Pressure, Sealing pressure
Output0.5-4.5V
Power supply4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
Compensation temperature-20~70ºC
Ambient temperature-40~110ºC
Working temperature-40~110ºC
Temperature drift(zero)±0.15% F.S. (-20~70ºC)
Temperature drift(full range)±0.15% F.S. (-20~85ºC)
Electrical connectionCable outlet
Mechanical connectionG1/4
Housing materialBrass

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 0


0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 10-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 20-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 30-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 4


Company Information

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 5

Factory

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 6

Exhibition

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 7

Our Certificate

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 8

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
