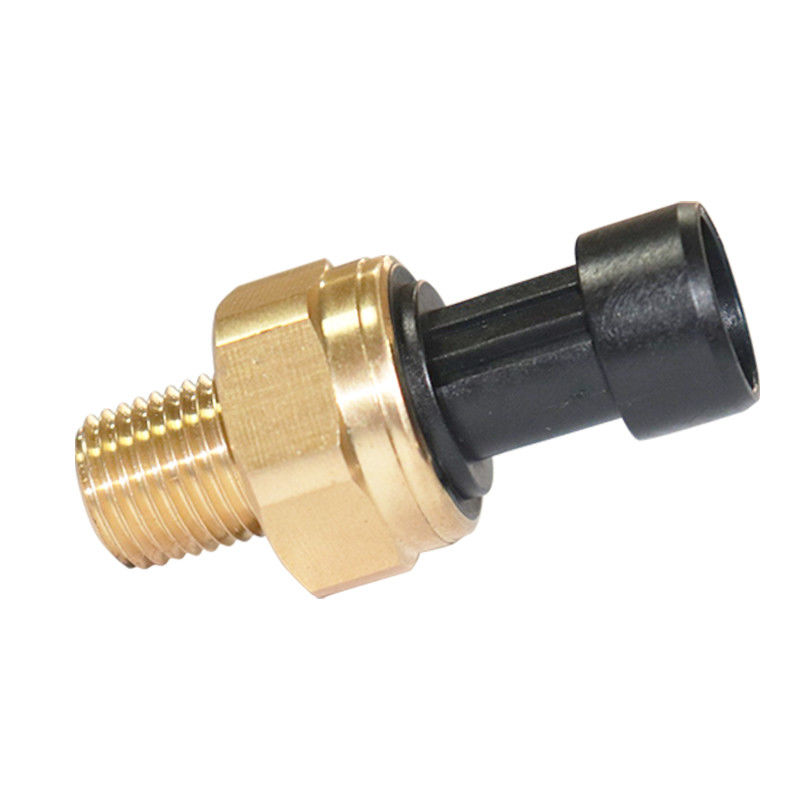

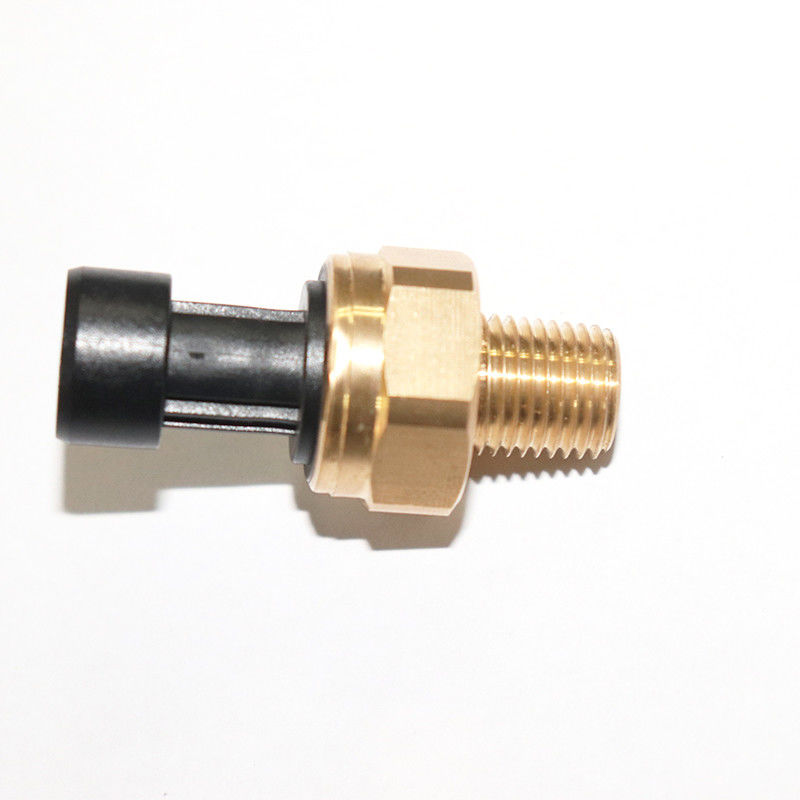

Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range

Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range

mini pressure sensor

air pressure transmitter

Miejsce pochodzenia:

Chiny (kontynentalne)

Nazwa handlowa:

WNK

Orzecznictwo:

CE

Numer modelu:

WNK83ma

Skontaktuj się z nami
Poproś o wycenę
Product Details
Dokładność:
1%
Zmierzone media:
Ciecz, gaz i para
Zakres ciśnienia:
0-1000 kPa
Sygnał wyjściowy:
0,5-4,5 VDC
Zasilanie:
4.75-5.25 VDC
Temperatury robocze:
-20 do 70 ℃
Tworzywo:
Mosiądz
Połączenie procesowe:
1/4npt
Połączenie elektryczne:
Parkard
Podkreślić:

mini pressure sensor

,

air pressure transmitter

Payment & Shipping Terms
Minimalne zamówienie
1 szt
Cena
negotiable
Szczegóły pakowania
Standardowe pudełko kartonowe eksportowe
Czas dostawy
5-8 dzień pracy
Zasady płatności
T/T, Western Union
Możliwość Supply
5000+sztuka+miesięcznie
Product Description
Product Description

Low Price Micro Brass Shell Material Pressure Sensor 1/4NPT 0-1000kPa

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25v DC and the maximum supply current is 15mA. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.



Applicable mediaLiquid, gas and steam
Pressure range0-1000kPa
CellCeramic capacitive pressure sensor
Pressure measurmentGauge Pressure, Sealing pressure
Output0.5-4.5V
Power supply4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
Compensation temperature-20~70ºC
Ambient temperature-40~110ºC
Working temperature-40~110ºC
Temperature drift(zero)±0.15% F.S. (-20~70ºC)
Temperature drift(full range)±0.15% F.S. (-20~85ºC)
Electrical connectionParkard
Mechanical connection1/4 NPT
Housing materialBrass
