Name: 4-20ma Automotive Pressure Sensor Air Compressor Refrigeration 100bar Pressure Input
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA-H
Price: 21.00 USD
Availability: InStock

Dom > produkty > Compact Pressure Sensor >

4-20ma Automotive Pressure Sensor Air Compressor Refrigeration 100bar Pressure Input

electronic pressure sensor

precision pressure sensor

100bar Input Automotive Pressure Sensor

Miejsce pochodzenia:

HEFEI, CHINY

Nazwa handlowa:

WNK

Orzecznictwo:

CE, SGS, ISO9001

Numer modelu:

WNK80MA-H

Skontaktuj się z nami

Poproś o wycenę

4-20ma Automotive Pressure Sensor Air Compressor Refrigeration 100bar Pressure Input

Product Details

wejście ciśnieniowe:

0-100 barów

Stabilność:

± 0,5% pełnej skali

typ:

Ceramiczny czujnik pojemnościowy

Aplikacja:

Samochody, Chłodnictwo, HVAC

Wyjście sygnału:

0,5–4,5 V prądu stałego

Wejście zasilania:

5 V DC, 12 V, 24 V

Gwarancja:

12-18 miesięcy

Ocena IP:

IP65 IP67

Podkreślić:

electronic pressure sensor

precision pressure sensor

100bar Input Automotive Pressure Sensor

Payment & Shipping Terms

Minimalne zamówienie

5 sztuk

Cena

negotiable

Szczegóły pakowania

Opakowanie zdatne do transportu morskiego lub opakowanie zdatne do lotu

Czas dostawy

7-10 dni roboczych

Zasady płatności

T/T, Western Union, MoneyGram

Możliwość Supply

5000 szt. miesięcznie

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Uzyskaj najlepszą cenę

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

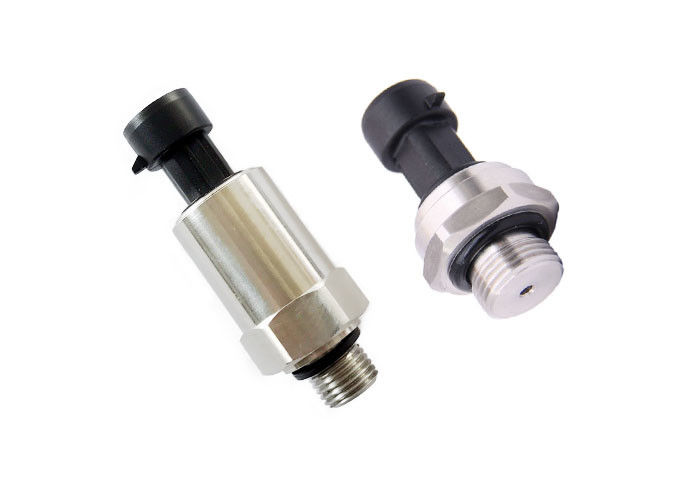

4-20ma, 0.5-4.5V Compact Size Pressure Sensor Transducer For Automobile Air Compressor Refrigeration

Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

Our unique ceramic capacitive pressure sensor is made of stainless steel and well-known brand sensor The special transmitter converting circuit can adjust the zero value and the full range expediently. It also has the intrinsically safe certificate the explosion proof certificate and the CE certificate.

It features high quality high stability, small size, low weight, compact structure, low cost and volume production It is widely used to measure pressure such as occasion of compressor, Auto, air-condition etc.

Data Sheet

Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	-100Kpa - 60Mpa
Accuracy	0.2%, 0.5%, 1.0% FS
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V, Other
Digital	I2C, SPI
Operation Condition and Temperature
Compensation Temperature	-40...75℃
Medium Temperature	-45 ... 85℃
Storage Temperature	-45 ... 85℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L
