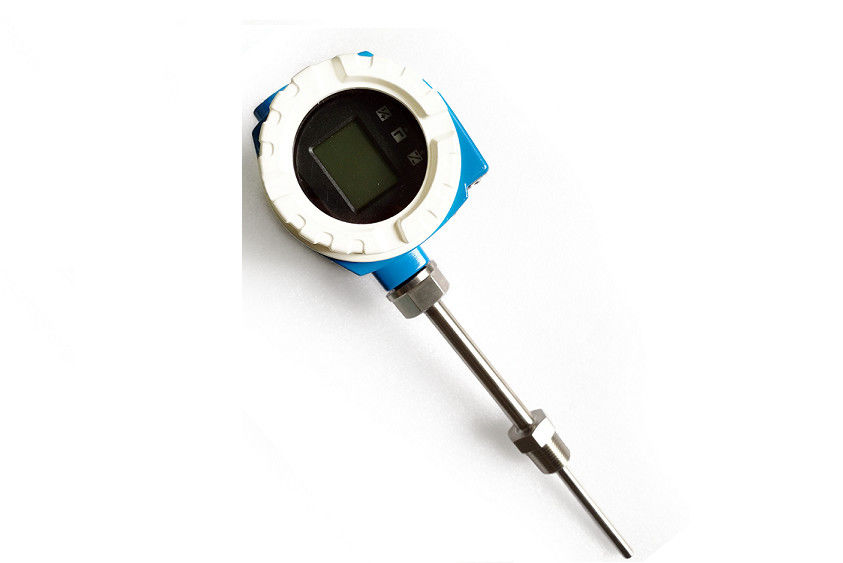

Name: LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK6T
Price: 403.00 USD
Availability: InStock

Dom > produkty > Smart Temperature Transmitter >

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

liquid temperature sensor

industrial temperature sensor

Miejsce pochodzenia:

HEFEI, CHINY

Nazwa handlowa:

WNK

Orzecznictwo:

ISO

Numer modelu:

WNK6T

Skontaktuj się z nami

Poproś o wycenę

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

Product Details

Zakres temperatur:

-270 ~ 800 ℃ (rezystor termiczny PT100)

typ:

Czujnik temperatury

Dokładność pomiaru:

0,2%FS

Tworzywo:

Aluminiowa obudowa

Wyjście sygnału:

4-20 mA, rs485

Wejście napięcia:

24 V (standard)

Były odporność:

Exia II CT4

Zmierz media:

Ciecz, gaz i para

Podkreślić:

liquid temperature sensor

industrial temperature sensor

Payment & Shipping Terms

Minimalne zamówienie

Cena

negotiable

Szczegóły pakowania

Standardowe opakowanie kartonowe eksportowe

Czas dostawy

3-8 dni roboczych

Zasady płatności

T/T, Western Union, MoneyGram

44mm Diameter Hart RTD Liquid Gas Temperature Transmitter

Uzyskaj najlepszą cenę

Wireless Smart Temperature Transmitter For Timer Button Alarm Wake

Uzyskaj najlepszą cenę

CE Resolution 0.1C 18v 36V Temperature Humidity Sensor

Uzyskaj najlepszą cenę

Steam 24V PT100 Head Mounted Temperature Transmitter

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

WNK temperature transmitter is Cost-effective model. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.

Features

1. Long-term drift<0.1/year
2. Install easily, more flexiable
3. 4~20mA/RS485 output

4. Self-diagnostics function

Specifications

Measuring media	liquid, gas
Measuring range	-270~800 ℃ (PT100 thermal resistor)
	0~1300℃, (Thermocouple K)
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA, RS485
Digital Accuracy	±0.04℃, PT100 input
Internal cold end compensation error	＜0.25℃±0.1%/10℃
Temperature drift	±0.05%/10℃full-scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	＜0.005%/V full-scale range
Long term drift	＜0.1/year
Allowable temperature	Ambient temperature		Storage temperature
	T4	Safe operation(T6)
	-40...85℃	-40...60℃	-40...95℃
Protection Class	IP66/67
Relative humidity	≤98%, condensation allowed
Electromagnetic compatibility	Accordance with EN 61 326

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol 0
