Name: Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK55
Price: 45.00 USD
Availability: InStock

Dom > produkty > Smart Pressure Transmitter >

Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output

smart type pressure transmitter

smart pressure sensor

Miejsce pochodzenia:

HEFEI, CHINY

Nazwa handlowa:

WNK

Orzecznictwo:

CE, SGS

Numer modelu:

WNK55

Skontaktuj się z nami

Poproś o wycenę

Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output

Product Details

Wejście:

-100kpa... 60Mpa

Wyjście sygnału:

4–20 ma, 0,5–4,5 V prądu stałego

Długoterminowa stabilność:

0,075%

Ochrona przed wnikaniem:

IP67

Zwilżone części:

304SS, 316SS

Zasilanie:

24 V prądu stałego

Komunikacja:

Hart Profibus FF

Podkreślić:

smart type pressure transmitter

smart pressure sensor

Payment & Shipping Terms

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Standardowe opakowanie kartonowe eksportowe

Czas dostawy

3 ~ 5 dni roboczych

Zasady płatności

T/T, Western Union, MoneyGram

Możliwość Supply

200 zestawów/dzień

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Uzyskaj najlepszą cenę

Wideo

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Uzyskaj najlepszą cenę

Wideo

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Uzyskaj najlepszą cenę

Wideo

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

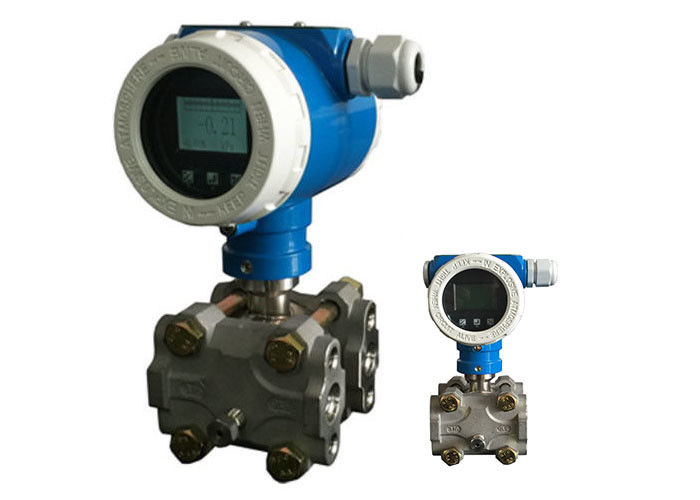

Explosion Proof Industrial Measure Smart Pressure Transmitter with 4-20ma Output

Product Features

1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years
4. Range ratio: 100: 1;
5. Module design: C
8. High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
9. High Pressure Ability: Max Pressure up to 700bar.

Applications
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Specifications

Applicable media	liquid, gas and steam
Pressure range	-0.1Kpa - High Pressure up to 700 Bar
Accuracy	0.075%, higher on request
Stability	±0.15% of URL for 5 years
Temperature drift	±0.03% of URL/10ºC
Output signals	4~20mA, Hart, Profibus-PA for option, FF per request
Display	LCD, or pointer optional
Housing material	Aluminum14
Mechanical connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Ex-proof	Exia II CT4, other option per request
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Measurement	with display: 9512652 (mm)
Measurement	without display: 9511552 (mm)
Net Weight	4kg (without bracket or process connection)
