Name: 4-20ma 0.5-4.5V Compact Pressure Sensor For Water Level Measuring
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

Dom > produkty > Compact Pressure Sensor >

4-20ma 0.5-4.5V Compact Pressure Sensor For Water Level Measuring

electronic pressure sensor

precision pressure sensor

0.5-4.5V Compact Pressure Sensor

Miejsce pochodzenia:

HEFEI, CHINY

Nazwa handlowa:

WNK

Orzecznictwo:

CE, SGS, ISO9001

Numer modelu:

WNK80MA

Skontaktuj się z nami

Poproś o wycenę

4-20ma 0.5-4.5V Compact Pressure Sensor For Water Level Measuring

Product Details

wejście ciśnieniowe:

-1bar -600bar

Wyjście analogowe:

0,5–4,5 V, 4–20 mA

Dokładność liniowa:

0,25% pełnej skali, 0,5% pełnej skali, 1,0% pełnej skali

Nitka:

G1/4, NPT1/8 inne

Złącze elektryczne:

Packard z kablem 3-żyłowym, Mały Hirschman, inne

Temperatura otoczenia:

-30-125C

Ochrona przed wnikaniem:

IP67 IP65

Podkreślić:

electronic pressure sensor

precision pressure sensor

0.5-4.5V Compact Pressure Sensor

Payment & Shipping Terms

Minimalne zamówienie

5 sztuk

Cena

negotiable

Szczegóły pakowania

Opakowanie zdatne do transportu morskiego lub opakowanie zdatne do lotu

Czas dostawy

7-10 dni roboczych

Zasady płatności

T/T, Western Union, MoneyGram

Możliwość Supply

5000 szt. miesięcznie

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Uzyskaj najlepszą cenę

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Uzyskaj najlepszą cenę

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Product Description

4-20ma 0.5-4.5V Compact Pressure Sensor Pressure Transducer For Water Level Measuring

Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement

Features :
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female

Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.

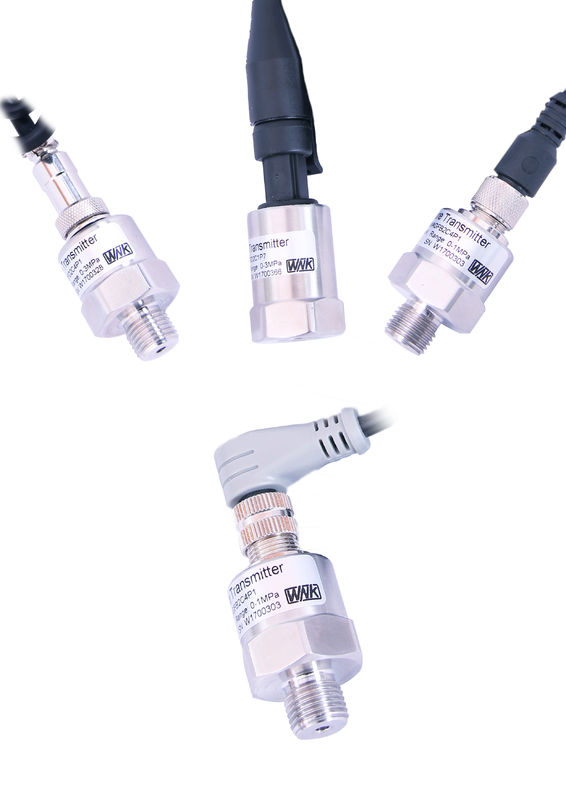

4-20ma 0.5-4.5V Compact Pressure Sensor For Water Level Measuring 0
