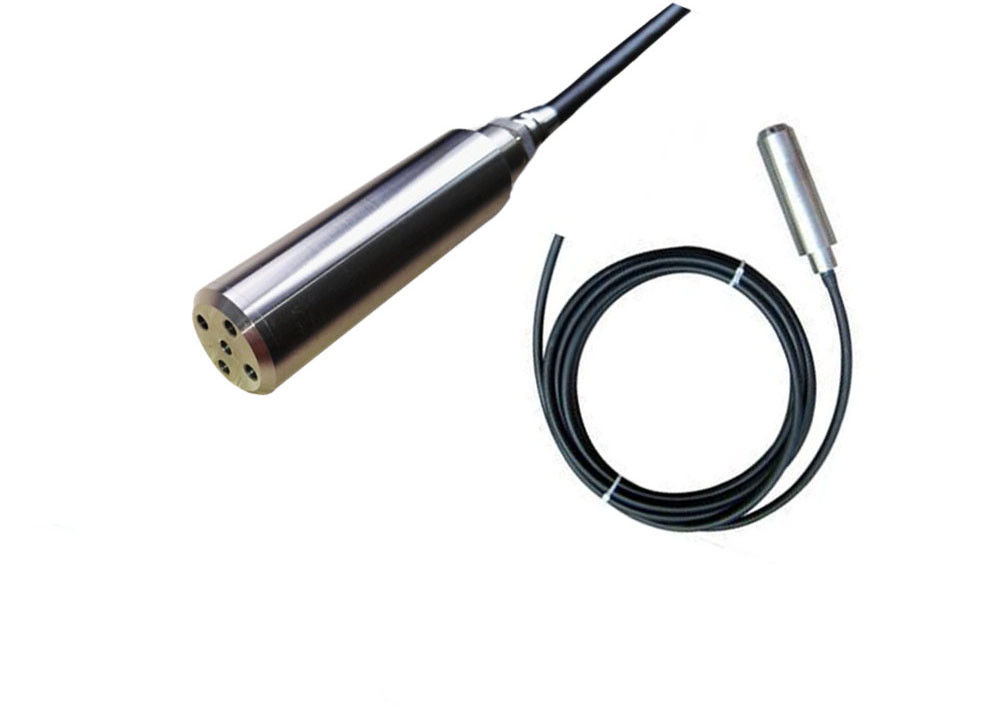

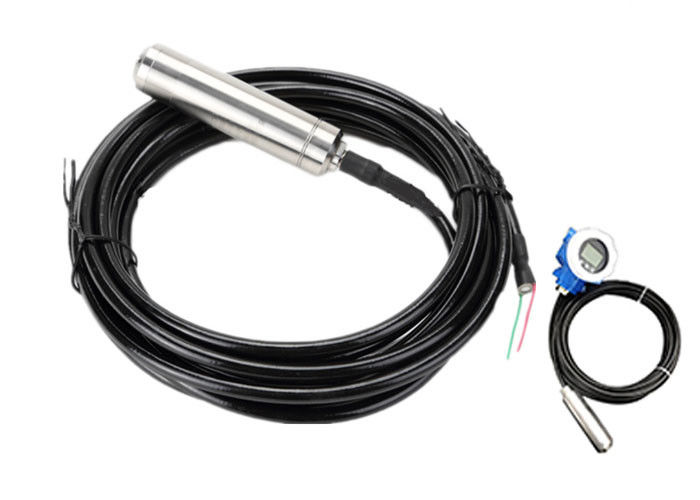

4~20ma Hydrostatic Submersible Level Sensor Level Transmitter For Water Tank

Product Description

WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

Open tank, waste water, fire fighting water tank, reservoir water level, fuel tank and etc.

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Quick Information

1.High accuracy 0.2%FS;
2.Wide application range 0-0.5~200m H2O;
3.Output 4~20mA, 0~10mA, 0~5V, 1~5V & customization;
4.High overload 150 times;
5.Stability 0.25%FS/Year;
6.Protection class IP68;
7.High cost effective with OEM &ODM

Specifications

Ordering Code

Certifications

Our Workshop
