Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol

Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol

smart temperature sensor

industrial temperature sensor

Miejsce pochodzenia:

Anhui, Chiny

Nazwa handlowa:

WNK

Orzecznictwo:

ISO

Numer modelu:

WNK6XT

Skontaktuj się z nami
Poproś o wycenę
Product Details
Stosowanie:
Przemysłowy
Teoria::
Przetwornik temperatury
Dokładność:
0,075% pełnej skali, 0,1% pełnej skali
Mieszkania:
Aluminium
Wyjście:
4-20 mA, Profibus-DP
Zasilanie:
24 V (standard)
Zakres temperatur:
-270 ~ 800 ℃ (PT100)
Podkreślić:

smart temperature sensor

,

industrial temperature sensor

Payment & Shipping Terms
Minimalne zamówienie
1
Cena
negotiable
Szczegóły pakowania
Standardowe opakowanie kartonowe eksportowe
Czas dostawy
3-8 dni roboczych
Zasady płatności
T/T, Western Union, MoneyGram
Product Description

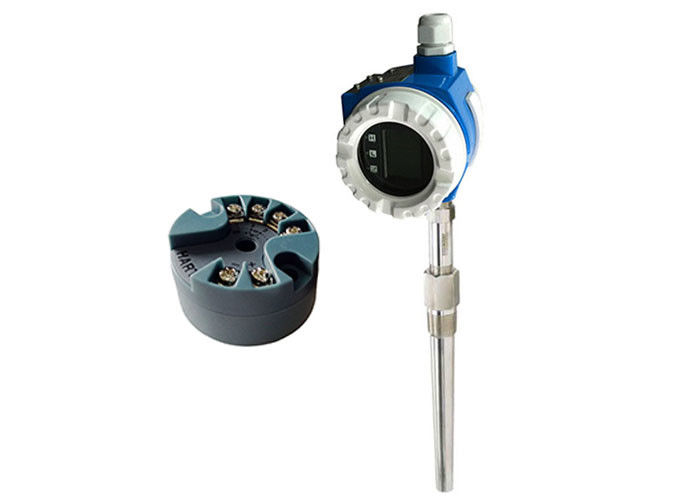

Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol 0



Universal Input Smart Profibus-DP Multi-channel Temperature Transmitter

Our PROFIBUS-DP field bus WNK6XT temperature transmitter is approved by PROFIBUS Nutzerorganisation e.V. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable..



Product Features
1. 4 Channel Output.

2. Universal input.
3. Install easily, more flexiable
4. 4~20mA/Profibus DP output

5. Self-diagnostics function


Product Spec
Measuring media liquid, gas
Measuring range -270~800 ℃ (PT100 thermal resistor)
0~1300℃, (Thermocouple K)
Power supply range 9~45V (9~24V, Ex)
Output signal 4~20mA/Hart/Profibus PA
Digital Accuracy ±0.01℃, PT100 input
Internal cold end compensation error <0.25℃±0.1%/10℃
Temperature drift ±0.05%/10℃full-scale range
0.1% between-10°C to 60°C
Effect of power supply on range <0.005%/V full-scale range
Long term drift <0.1/year
Allowable temperature Ambient temperature Storage temperature
T4 Safe operation(T6)
-40...85℃ -40...60℃ -40...95℃
Protection Class IP66/67
Relative humidity ≤98%, condensation allowed
Electromagnetic compatibility Accordance with EN 61 326





Product application

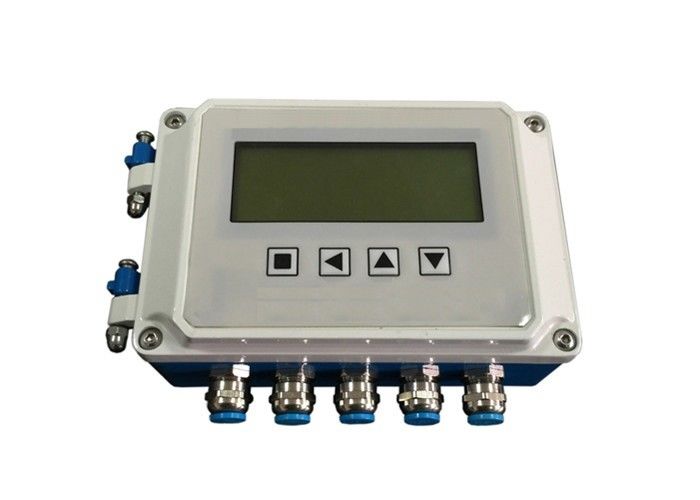

Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol 1



FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
