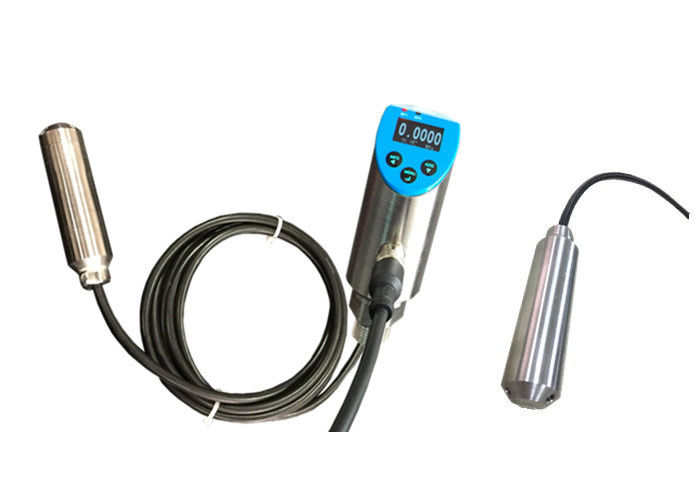

OLED Electronic Digital Level Switch PNP + 4~20ma + Modbus IP65 Ingress Protection

OLED Electronic Digital Level Sensor Switch PNP + 4~20ma + Modbus

SLS Intelligent Level Switch is designed for level monitoring and measurement of liquid and oil media. It is applied to general industry such as tank, case, liquid cell and deep well. It is level switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

SLS level switch range is 0~100mH2O, with high measuring accuracy of 0.2%FS. It has normally open or normally closed, switch delay, switch point settable functions and so on. Thus our SLS is widely applied in various level / height monitoring and control.

Quick Information:

• Current output 2×PNP + 0mA/4mA～20mADC + MODBUS  or voltage output: 2×PNP + 0V～5VDC/10VDC + MODBUS
• PNP switching, voltage and current outputs
• Supporting Switching delay
• Analog output span settable
• Switching points settable
• Switching can be set normally open / normally closed
• Water, oil or other liquids competible with SS304 &SS316L
• OLED high performance display
• Display turnable 180°
• Media density settable
• Housing with electrical connection against process connection rotatable 330°
• Support MODBUS protocol

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
