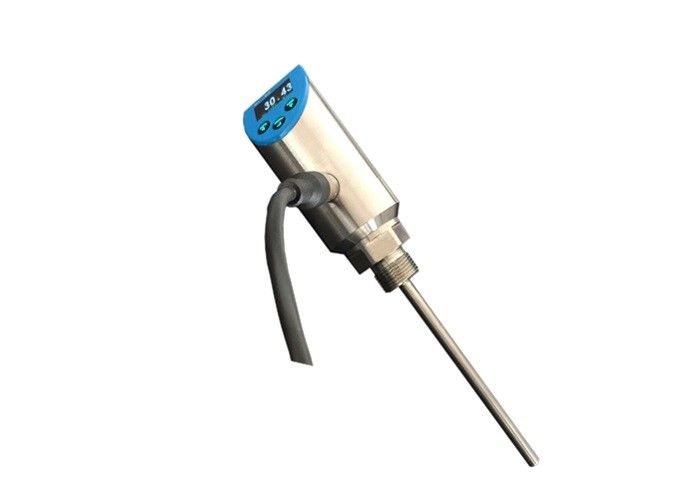

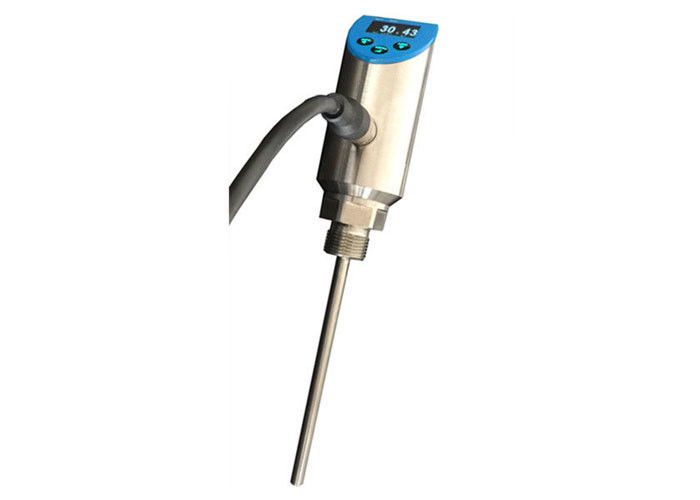

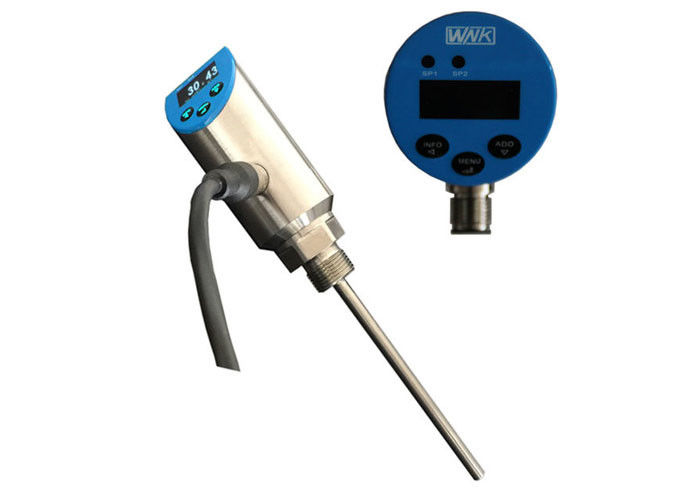

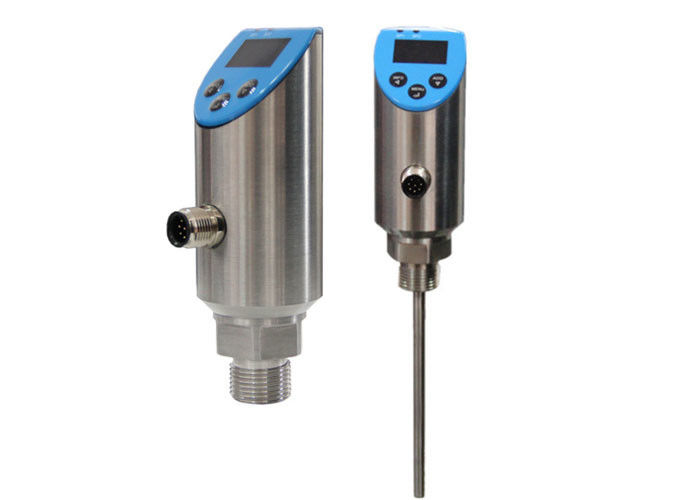

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output
STS supports functions of switch delay, normally open, normally closed, switching point settable, display temperature peak value and environment temperature and other functions. It can connect with PT100 and PT1000 temperature sensors.
The temperature switch STS is robustly designed and very easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
Quick Information:
- PT100, PT1000 sensor input
- Supprt MODBUS protocol
- Voltage output 2×PNP + 0V～5VDC/10VDC + MODBUS; current output 2×PNP + 0mA/4mA～20mADC + MODBUS
- OLED display
- Switching points settable
- Switching can be set normally open / normally closed
- Analog output span settable
- Various analog output ways available
- Supporting Switching delay
- Electrical connector of M12 5PIN and M12 8PIN
- Display reversing 180°
- Displaying temperature peak value and environment temperature
- Housing with electrical connection against process connection rotatable 330°
- Password protection function available
Detailed Technical Info:
| Measuring range |
-50~260℃ |
| Accuracy |
≤0.5℃ |
| Supply Power |
12…30V DC |
| Temp. Error |
±0.02%FS/℃ |
| Long-term Stability |
±0.3%FS/Year |
| Analog output accuracy |
±0.2%FS |
| Measuring Media |
Water, mineral-based hydraulic fluid and Synthetic oil |
| Wetted material |
Stainless steel, Nitrile Butadiene Rubber and PTFE |
|
Output Configurations
|
switching+voltage+ communication |
2×PNP + 0V～5VDC/10VDC + MODBUS |
| switching+current+ communication |
2×PNP + 0mA/4mA～20mADC + MODBUS |
| Switching current |
1.0A(Max.) |
| Switching type |
normally open , normally closed (settable) |
| Switching respond time |
＜10ms |
| Switching delay |
0.00s～1000.0s |
| Switching motion mode |
delay or windows mode |
| Analog signal output and maximum ohmic load RL |
Current output |
0/4…20mA,20…4/0mA RL≤0.5kΩ |
| Voltage output |
0…5/10V,5/10…0V RL>10kΩ |
| Screen display |
OLED |
| Menu language |
Chinese,English |
| Switching instruction |
2X Red LED |
| Displaying pressure units |
kPa, mm, cm, m |
| Buttons |
3X blue back-lighted touch buttons |
| Displaying supplementary variables |
environment temp., analog output value, max. Peak value,mini. peak value |
| Supplementary variables displaying mode |
fixed displaying or INFO button switching Display |
| Working temperature |
-30℃～80℃ |
| Media temperature |
0℃～60℃ |
| Storage temperature |
-40℃～80℃ |
| Electromagnetism compatible |
GB/T 17626.2/3/4-2006 |
| Shock resistance |
≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| Vibration resistance |
≤50g/11ms(IEC 60068-2-27-2008) |
| Protection Rating |
IP65 / IP68 |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
